Product Model
279-483
Key Features

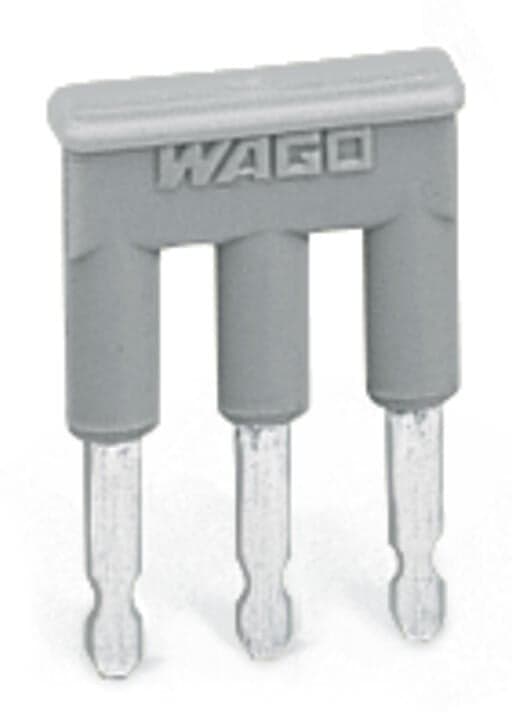

- 1Insulated 3-way comb-style jumper bar for secure electrical connections.
- 2Gray color for easy identification in wiring systems.
- 3Dimensions: 12 mm width x 3.89 mm depth for compact installation.
- 4Weight: 1.023 g for lightweight handling and storage.
- 5Suitable for various electrical applications, including industrial and OEM use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 12?mm?/ 0.472?inches | Height | 3.89?mm?/ 0.153?inches |
| Jumper assignment | 1-2-3 | Note (material data) | Information on material specifications can be found here |
| Color | gray | Fire load | 0.007MJ |
| Weight | 1g | eCl@ss 10.0 | 27-14-11-40 |
| eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
| ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 200?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918610445 |
| Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated current | 15A |
Specifications may be subject to change without notice
