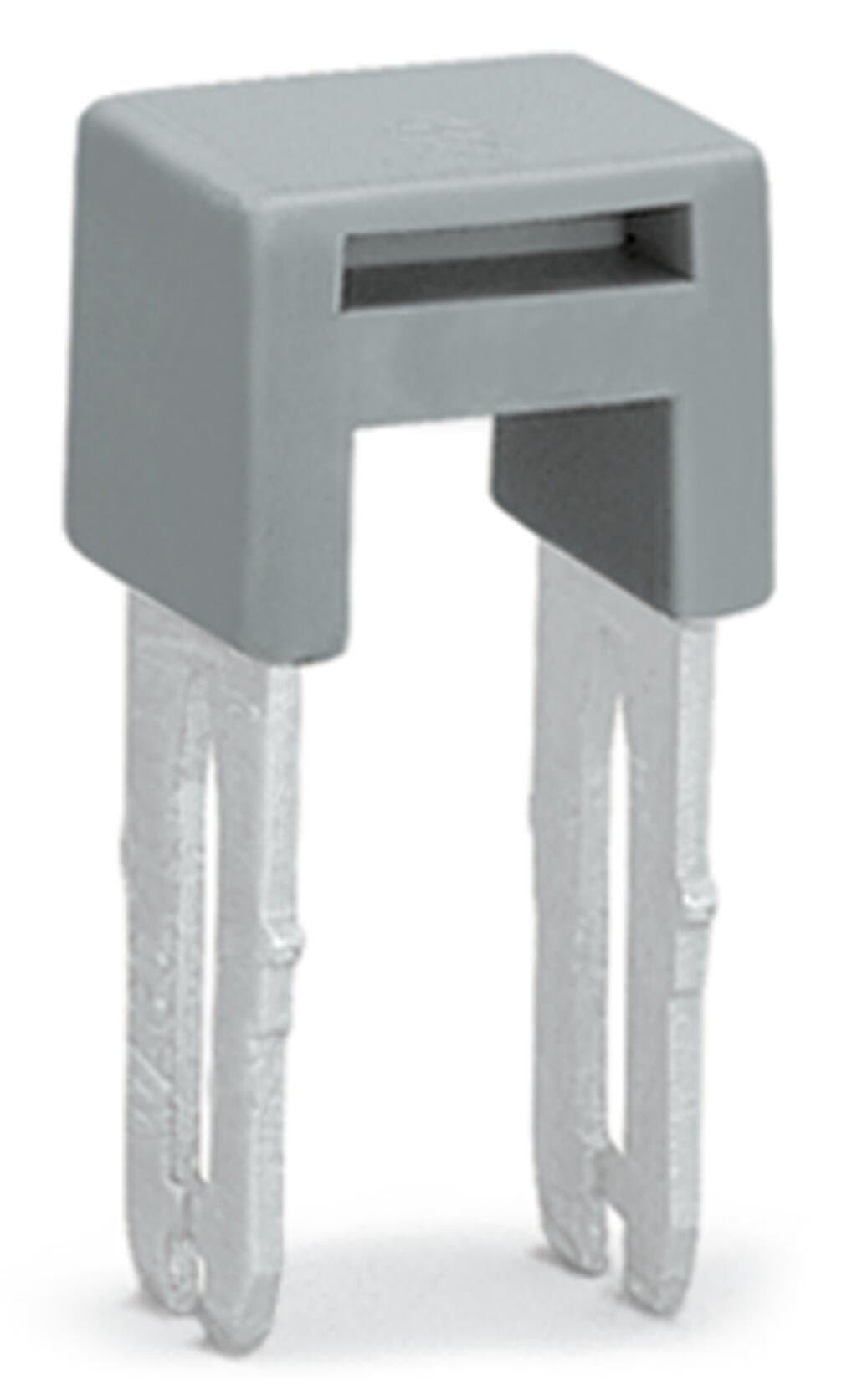

Product Model
279-409
Key Features
- 1The Insulated Jumper effectively prevents short circuits and electrical interference.
- 2Built with durable materials to ensure long-lasting performance in industrial environments.
- 3Optimizes electrical relaying operations, extending equipment lifespan.
- 4Easy to install and compact design enhances system efficiency.
- 5Provides reliable connectivity between terminal blocks for robust electrical installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 8?mm?/ 0.315?inches | Height | 8?mm?/ 0.315?inches |
| Depth | 22.2 mm / 0.874 inches | Jumper assignment | 1-2 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Fire load | 0.011MJ | Weight | 1.4g |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-40 |
| eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
| ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918255257 |
| Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated current | 15A |
Specifications may be subject to change without notice
