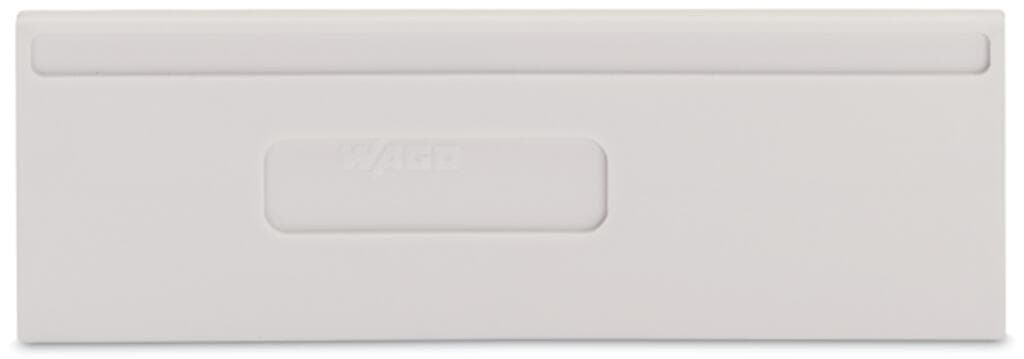

Product Model
279-349
Key Features
- 1Made from durable 2 mm thick material for long-lasting performance.
- 2Designed to fit perfectly in various electrical setups, ensuring efficient use.
- 3Easy to integrate with any electrical system due to its light gray color.
- 4Manufactured by WAGO, a trusted brand in the electrical industry.
- 5Available at competitive prices, making it a cost-effective solution for your needs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2?mm?/ 0.079?inches | Height | 72.2?mm?/ 2.843?inches |
| Depth | 25.4?mm?/ 1?inches | Note (material data) | Information on material specifications can be found here |
| Color | light gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.083MJ | Weight | 2.7g |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332293327 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
