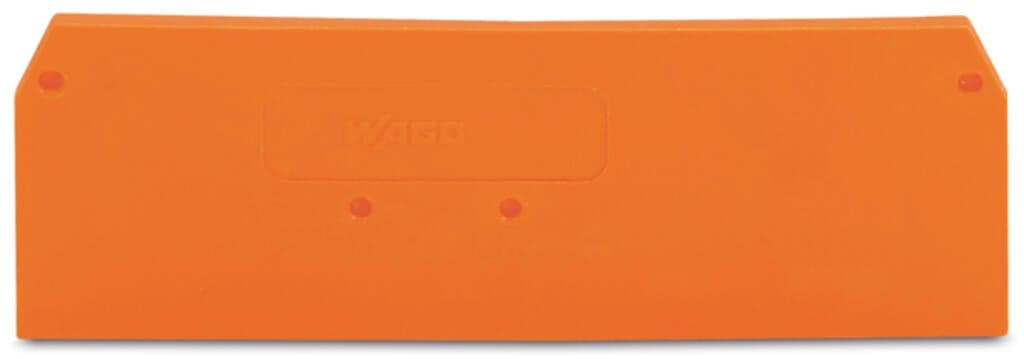

Product Model
279-346
Key Features
- 1Durable design with high-quality materials for long-lasting performance.
- 2Easy-to-use push-in connection technology simplifies installation.
- 3Compatible with a wide range of industrial applications.
- 4Robust and resistant to environmental factors like dust and moisture.
- 5Ideal for use in harsh industrial environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2?mm?/ 0.079?inches | Height | 72.2?mm?/ 2.843?inches |
| Depth | 27?mm?/ 1.063?inches | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.075MJ | Weight | 2.5g |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4017332293297 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
