Product Model

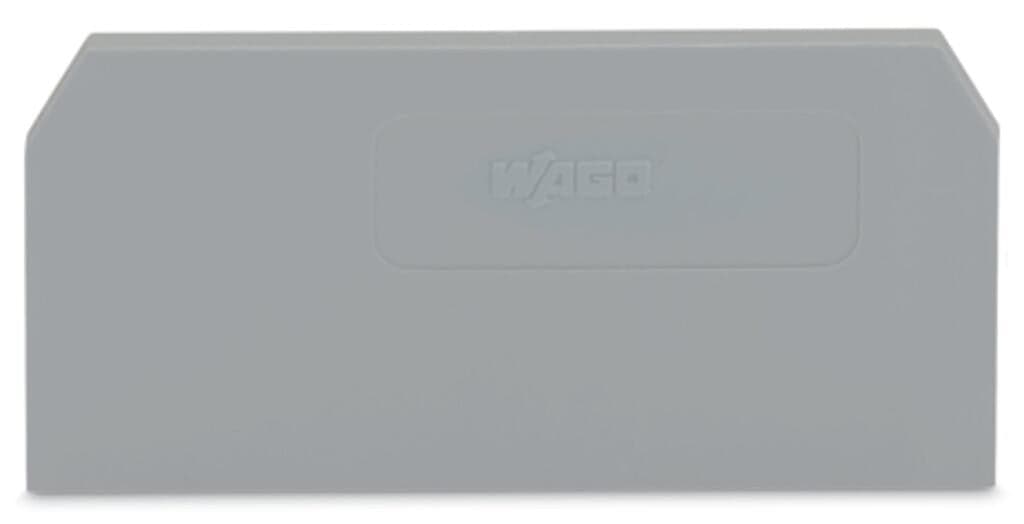

279-325
Key Features
- 1High-Current Capability: Handles up to 120 A/mm², ensuring robust electrical connections.
- 2Durable Design: Withstands short-time current tests without damage, ensuring long-lasting performance.
- 3Automatic Clamping: CAGE CLAMP technology adjusts clamping force automatically to conductor cross-section.
- 4Versatile Compatibility: Suitable for conductors ranging from 0.25 to 2.5 mm², accommodating various wire sizes.
- 5Enhanced Safety: Meets stringent voltage ratings up to 800 V, ensuring safe and reliable operation in automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2?mm?/ 0.079?inches | Height | 51.4?mm?/ 2.024?inches |
| Depth | 27?mm?/ 1.063?inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.057MJ | Weight | 1.9g |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4017332293181 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
