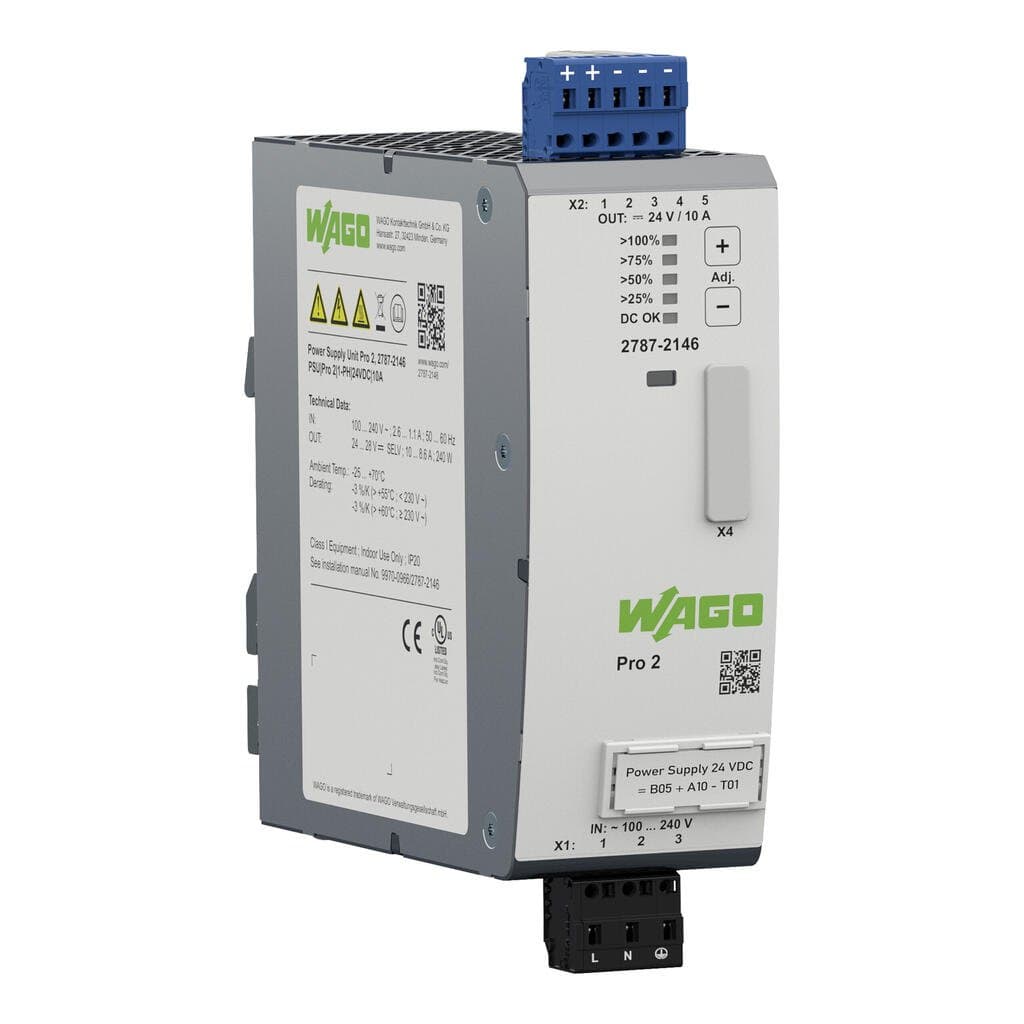

Product Model
2787-2146
Key Features
- 1240W output with low power loss (≤1W in standby).
- 2Compatible with 90-264Vac single-phase AC inputs.
- 3Customizable for specific application needs.
- 4Supports IO-Link, Modbus RTU, and Modbus TCP for seamless integration.
- 5Rated IP20 with natural convection cooling and CAGE CLAMP connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Isolation voltage (pri.-sec., AC) | 3,510V | Isolation voltage (pri.-PE, AC) | 2,200V |
| Isolation voltage (sec.-PE) | DC 0.5?kV | Protection class | I |
| Protection type | IP20; per EN 60529 | Overvoltage category | III (≤ 2000 m a.s.l.); II (> 2000 m a.s.l.) |
| Pollution degree | 2 | Transient suppression (primary) | Yes |
| Overvoltage protection; secondary | Internal protective circuit | Short-circuit-protected | Yes |
| Open-circuit-proof | Yes | Parallel operation | Yes |
| Series operation | Yes | MTBF | > 1,200,000 h (per IEC 61709) |
| Connection type 1 | Input/Output/Signaling | Connection technology | CAGE CLAMP? |
| WAGO connector | WAGO 721 Series | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2?/ 20 … 16?AWG |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2?/ 20 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Width | 50?mm?/ 1.969?inches | Height | 130?mm?/ 5.118?inches |
| Depth from upper-edge of DIN-rail | 130?mm?/ 5.118?inches | Note (dimensions) | Height without connector |
| Mounting type | DIN-35 rail | Weight | 1000g |
| Ambient temperature (operation) | -25 … +70 °C (Device starts at ?40 °C (type-tested)) | Ambient temperature (storage) | -40 … +85 °C |
| Relative humidity | 5 … 96?% (no condensation permissible) | Derating | ?3°%/K (> +55°°C and Ui< 230°VAC); ?3°%/K (> +60°°C and Ui≥ 230°VAC) |
| Climatic category | 3K3 (per EN 60721) | Operating altitude (max.) | 5000m |
| Conformity marking | CE | Standards/specifications | SEMI F47 |
| ETIM 9.0 | EC002540 | ETIM 8.0 | EC002540 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | CN |
| GTIN | 4055143907330 | Customs tariff number | 8504409510 |
| RoHS Compliance Status | Compliant,No Exemption | Phases | 1 |
| Nominal input voltage [V] | 1 x AC?100 … 240?V | Input voltage range | 1 x AC 90 … 264 V |
| Nominal mains frequency range | 50 … 60?Hz | Input current I<sub>i</sub> | ≤?1.2?A (240 VAC; Nominal load);?≤?2.7?A (100 VAC; Nominal load) |
| Inrush current | ≤?11?A (after 1 ms) | Power factor correction (PFC) | Active |
| Mains failure hold-up time | ≥?25?ms (230?VAC) | Nominal output voltage [V] | DC?24?V (SELV) |
| Output voltage range | DC?24?V | Default setting | DC?24?V |
| Nominal output current I<sub>o nom</sub> | 10?A (24?VDC) | Nominal output power | 240W |
| Deviation | ≤?1?% | Residual ripple | ≤?70?mV (peak-to-peak) |
| Current limitation | 1.1 x Io nom(typ.) | Overload behavior | TopBoost/PowerBoost/Time-limited constant current mode (other overload behaviors can be set) |
| PowerBoost | DC?15?A (5?s) | TopBoost | Up to 600 % |
| Signaling | Digital signal input and output (DI/DO) | Communications | EtherNet/IPTM(2789-9023 Communication Module) |
| Power loss P<sub>l</sub> | ≤ 1 W (standby); ≤ 2.2 W (no load); ≤ 12 W (230 VAC; nominal load) | Efficiency (typ.) | 95.2?% (230 VAC; 10 A; 25 °C) |
| Internal fuse | T 6.3 A / 250 VAC | Backup fusing (recommended) | 16?A (for USA/Canada: 15?A) |
