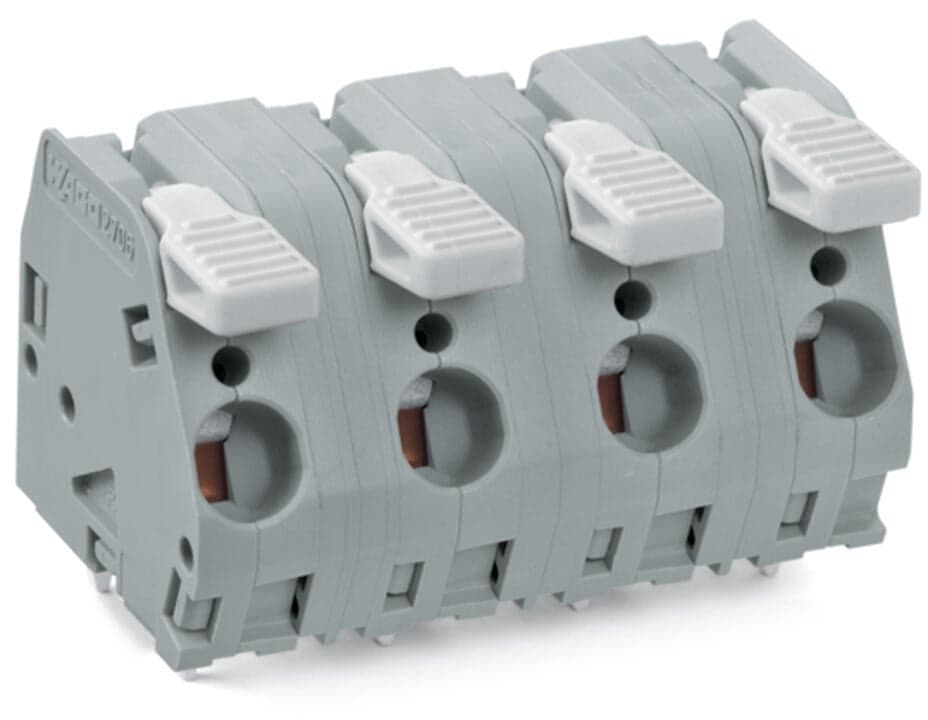

Product Model
2706-304
Key Features
- 1High-Quality Construction: Made from durable polyamide (PA66) for long-lasting performance.
- 2Efficient Connectivity: Push-in CAGE CLAMP technology ensures quick and secure connections.
- 3Versatile Compatibility: Supports wire sizes from 20 AWG to 10 AWG and conductor areas up to 6 mm².
- 4Robust Design: Rated for 41A current and 1kV voltage, suitable for demanding applications.
- 5Compliance and Safety: RoHS compliant, no SVHC, ensuring environmental safety and regulatory compliance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 4 |
| Total number of potentials | 4 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 12.5 mm / 0.492 inches |
| Width | 45 mm / 1.772 inches | Height | 30 mm / 1.181 inches |
| Height from the surface | 25.5 mm / 1.004 inches | Depth | 26 mm / 1.024 inches |
| Solder pin length | 4.5mm | Solder pin dimensions | 1 x 1.4 mm |
| Drilled hole diameter with tolerance | 1.8(+0.1)mm | PCB contact | THT |
| Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.586MJ | Weight | 26.5g |
| Limit temperature range | -60 … +105 °C | Product Group | 4 (Printed Circuit Connectors) |
| eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
| ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25 pcs |
| Packaging type | Box | Country of origin | PL |
| GTIN | 4050821093466 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
| Rated voltage (III/2) | 1000V | Rated surge voltage (III/2) | 8kV |
| Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 8kV |
| Rated current | 41A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 30A | Rated voltage UL (Use Group C) | 600V |
| Rated current UL (Use Group C) | 30A | Connection technology | CAGE CLAMP? |
| Actuation type | Lever | Solid conductor | 0.5 … 6 mm2 / 20 … 10 AWG |
| Fine-stranded conductor | 0.5 … 6 mm2 / 20 … 10 AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 6 mm2 |
| Fine-stranded conductor; with uninsulated ferrule | 0.5 … 6 mm2 | Strip length | 11 … 12 mm / 0.43 … 0.47 inches |
| Conductor connection direction to PCB | 30° | Number of poles | 4 |
Specifications may be subject to change without notice
