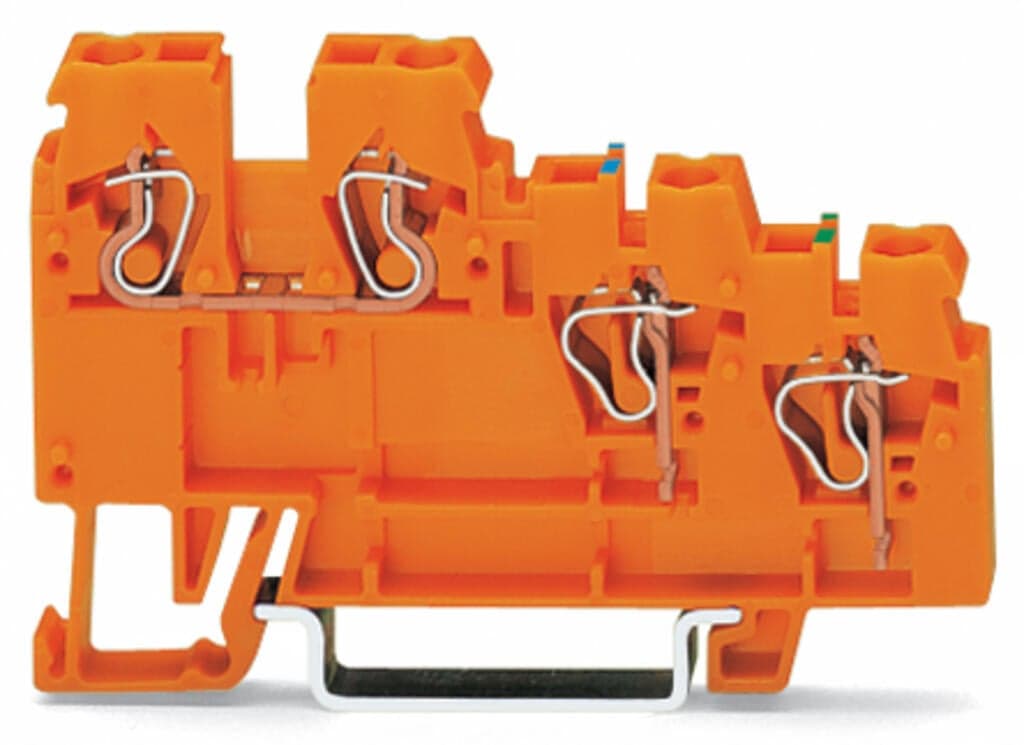

Product Model
270-577
Key Features
- 1Versatile 3-Conductor Design: Compatible with various industrial applications.
- 2CAGE CLAMP Technology: Secure and reliable conductor connections.
- 3Orange Color Coding: Easy identification of conductor entries.
- 4Side Marking Slots: Simplifies wiring and reduces errors.
- 5High-Quality Material: Durable and resistant to environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 4 | Total number of potentials | 3 |
| Number of levels | 3 | Width | 5?mm?/ 0.197?inches |
| Height | 68?mm?/ 2.677?inches | Depth from upper-edge of DIN-rail | 39?mm?/ 1.535?inches |
| Design | horizontal type | Mounting type | DIN-35 rail |
| Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.176MJ | Weight | 8.9g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 1 (Rail Mounted Terminal Blocks) | eCl@ss 10.0 | 27-14-11-28 |
| eCl@ss 9.0 | 27-14-11-28 | ETIM 9.0 | EC000900 |
| ETIM 8.0 | EC000900 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 10?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4050821035275 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
| Rated current | 18A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Power loss, per pole (potential) | 0.431W | Rated current I<sub>N</sub> for specified power loss | 18A |
| Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches |
| Wiring direction | Front-entry wiring |
