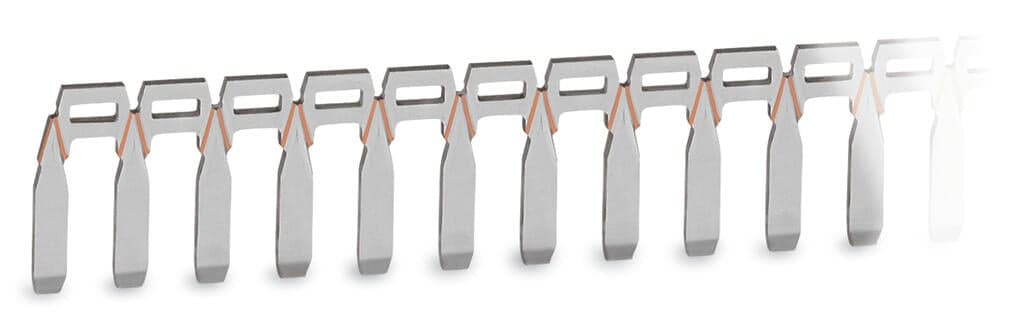

Product Model
270-480
Key Features
- 1High Current Rating: Rated for 18 A, suitable for demanding electrical connections.
- 280-Way Unplated: Provides 80 unconnected terminals for versatile wiring configurations.
- 3Silver-Colored: Durable and corrosion-resistant silver-colored finish.
- 4RoHS Compliant: Meets environmental standards for safe and sustainable use.
- 5Compact Design: Measures 2.5 mm in height, ideal for space-constrained applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | Jumpers can be shortened using an electronic side cutter. | Width | 397 mm / 15.63 inches |
| Height | 2.5?mm?/ 0.098?inches | Depth | 12 mm / 0.472 inches |
| Note (material data) | Information on material specifications can be found here | Color | silver-colored |
| Weight | 13.9g | eCl@ss 10.0 | 27-14-11-40 |
| eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
| ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 10?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454224042 |
| Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated current | 18A |
Specifications may be subject to change without notice
