Product Model

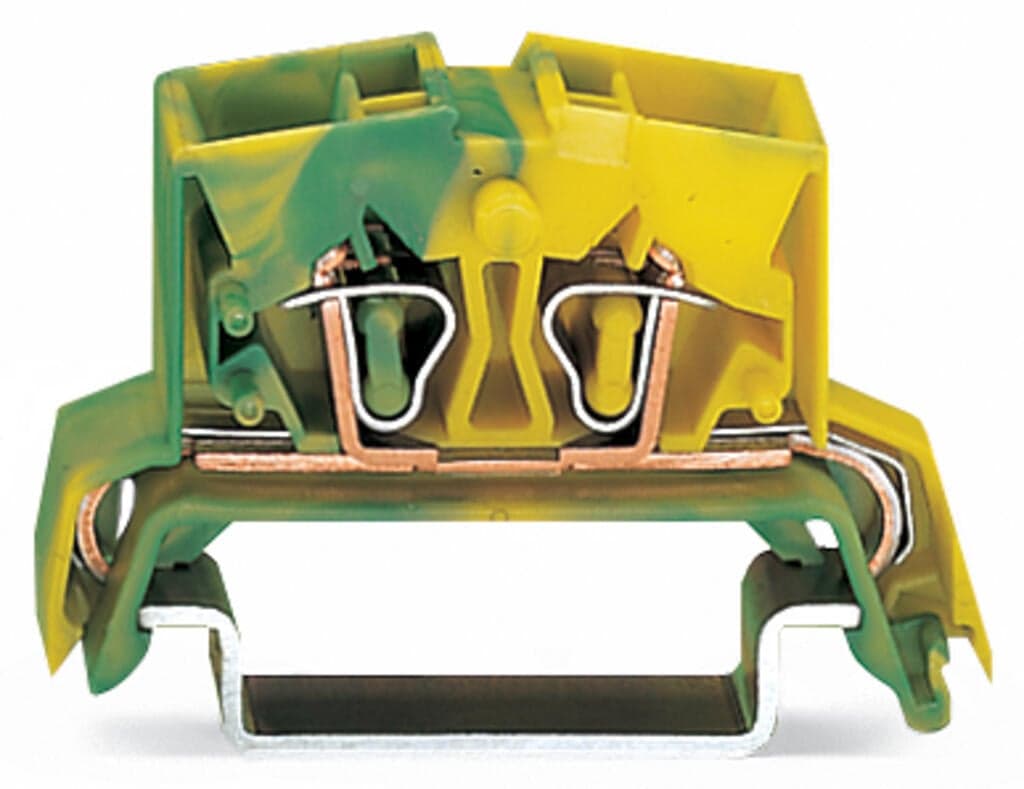

264-737
Key Features
- 1Compact Design: 10 mm width, 46.5 mm depth, and 8.860 g weight for easy installation.
- 2Versatile Connectivity: Supports 0.08 to 2.5 mm² solid conductors, suitable for 28 to 12 AWG wires.
- 3Durable Construction: Made from thermoplastic insulating body, ensuring long-lasting performance.
- 4Easy Mounting: Designed for DIN-rail 35 x 15 and 35 x 7.5 mounting, ensuring secure placement.
- 5High-Quality Clamping: Utilizes WAGO's CAGE CLAMP technology for secure and reliable connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 4 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 10?mm?/ 0.394?inches |
| Height | 46.5?mm?/ 1.831?inches | Depth from upper-edge of DIN-rail | 24.5?mm?/ 0.965?inches |
| Design | horizontal type | Mounting type | DIN-35 rail |
| Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
| Color | green-yellow | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.118MJ | Weight | 8.9g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-41 |
| eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
| ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918451956 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Note (conductor cross-section) | 12 AWG: THHN, THWN |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
