Product Model
264-347
Key Features

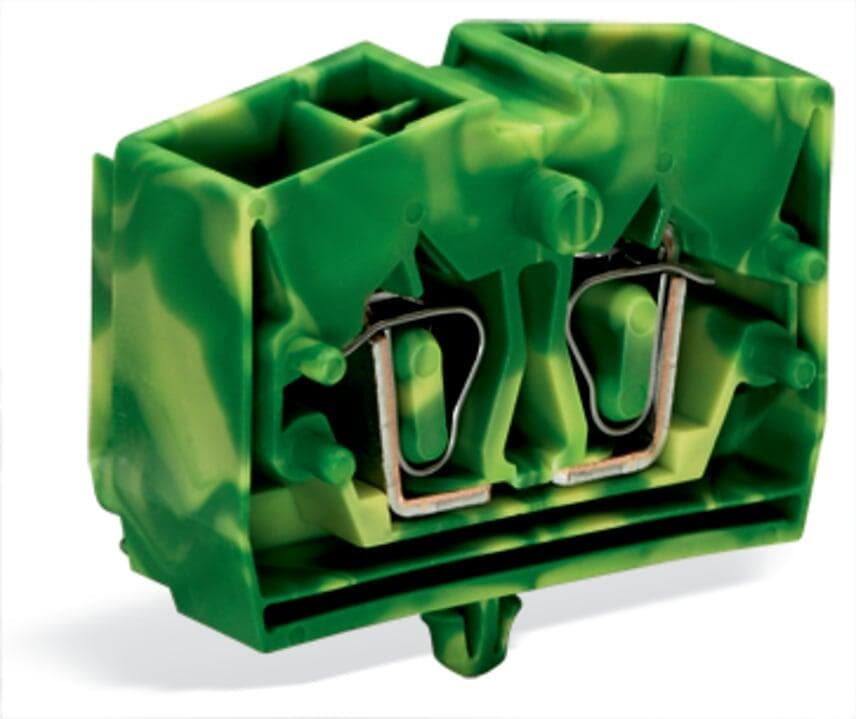

- 1The WAGO 264-347 terminal block ensures reliable connections with its CAGE CLAMP technology.
- 2Easy to install with snap-in mounting feet, suitable for DIN rail or surface mounting.
- 3Durable and visible green-yellow color for easy identification in industrial settings.
- 4Accommodates wire sizes from 0.08mm² to 2.5mm² (#28AWG to #12AWG).
- 5Compact dimensions (10mm width, 32mm depth) for efficient use in automation systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 4 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 10?mm?/ 0.394?inches |
| Height from the surface | 22.1?mm?/ 0.87?inches | Depth | 32?mm?/ 1.26?inches |
| Design | horizontal type | Mounting type | Snap-in foot |
| Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
| Color | green-yellow | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.117MJ | Halogen-free | Yes |
| Weight | 6.4g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 9 (Std Chassis Mt Blocks) |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | box | Country of origin | CH |
| GTIN | 4044918414722 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
