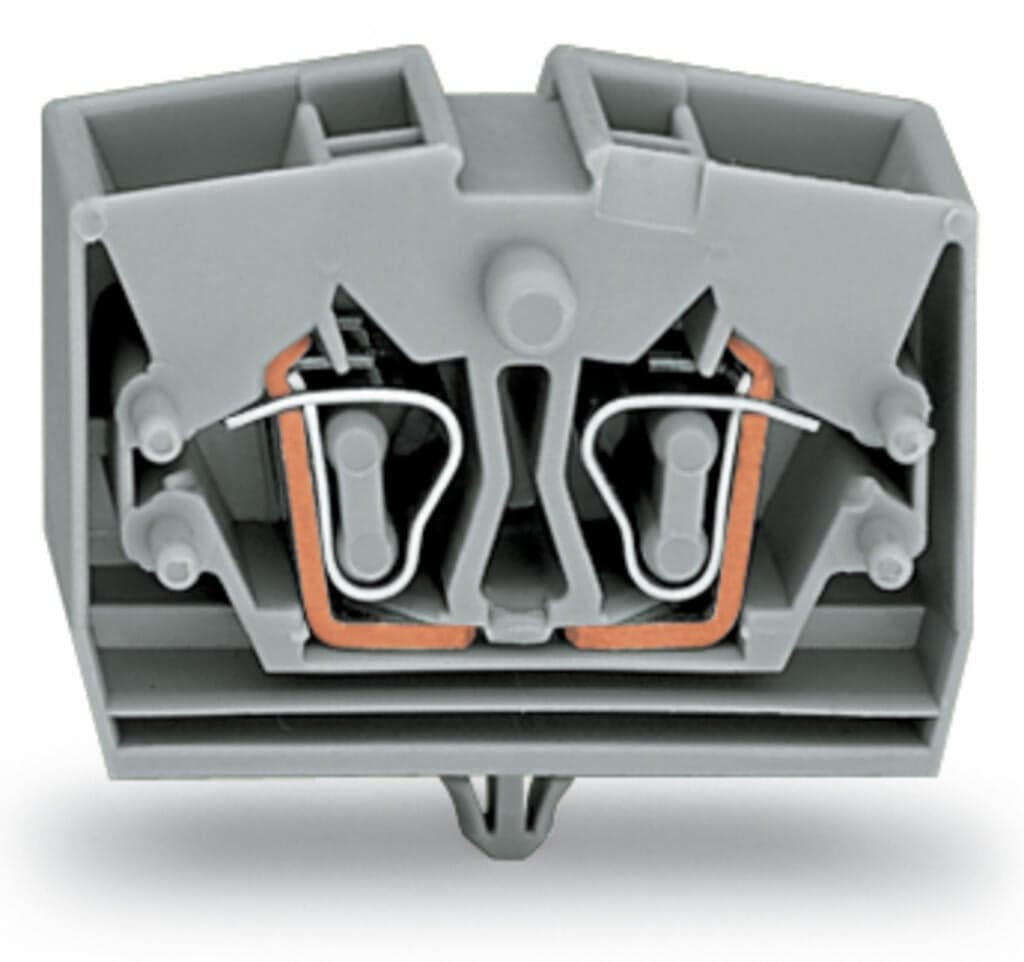

Product Model
264-341
Key Features
- 1Snap-in Mounting Foot: Easy installation with a snap-in mounting foot.
- 2CAGE CLAMP Technology: Secure connections with WAGO's CAGE CLAMP technology.
- 34-Conductor Design: Supports up to 4 conductors with a single terminal block.
- 4Gray Color: Durable and easy-to-spot gray color.
- 5Versatile Thickness Range: Compatible with plate thicknesses from 0.6 to 1.2 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 4 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 10?mm?/ 0.394?inches |
| Height from the surface | 22.1?mm?/ 0.87?inches | Depth | 32?mm?/ 1.26?inches |
| Design | horizontal type | Mounting type | Snap-in foot |
| Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.115MJ | Halogen-free | Yes |
| Weight | 6.4g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 9 (Std Chassis Mt Blocks) |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | box | Country of origin | CH |
| GTIN | 4044918414661 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 800V |
| Rated impulse voltage (III / 3) | 8kV | Rated current | 24A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
| Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 20A |
| Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 20A |
| Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 20A |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Note (conductor cross-section) | 12 AWG: THHN, THWN |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
