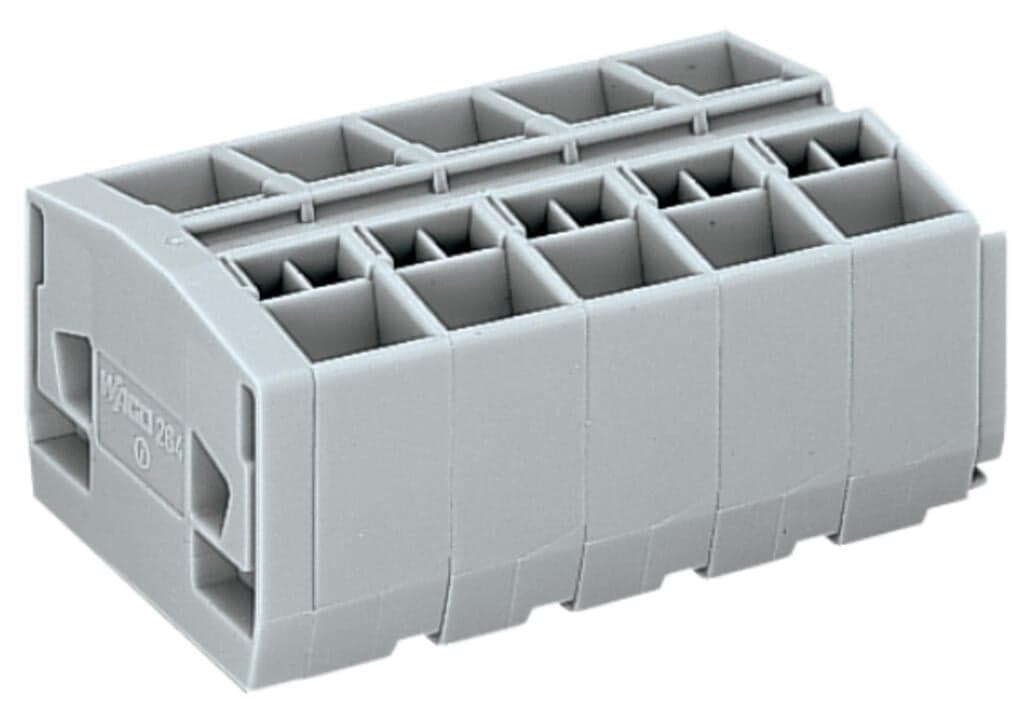

Product Model
264-255
Key Features
- 1Snap-in Mounting Feet: Easy installation on various plate thicknesses.
- 25-Pole Design: Supports multiple connections in a compact setup.
- 3CAGE CLAMP Connections: Secure and reliable wire connections.
- 4Gray Color: Durable and visually appealing design.
- 5Rated for 24A Current: Handles high electrical currents efficiently.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 20 | Total number of potentials | 5 |
| Number of levels | 1 | Width | 57?mm?/ 2.244?inches |
| Height from the surface | 22.1?mm?/ 0.87?inches | Depth | 32?mm?/ 1.26?inches |
| Module width | 10?mm?/ 0.394?inches | Design | horizontal type |
| Mounting type | Snap-in foot | Marking level | Center marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.635MJ |
| Halogen-free | Yes | Weight | 33.9g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-06 |
| eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
| ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918416030 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
| Rated current | 24A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 600V |
| Rated current UL (Use Group B) | 20A | Rated voltage UL (Use Group C) | 600V |
| Rated current UL (Use Group C) | 20A | Rated voltage CSA (Use Group C) | 600V |
| Rated current CSA (Use Group C) | 20A | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Number of poles | 5 | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
