Product Model

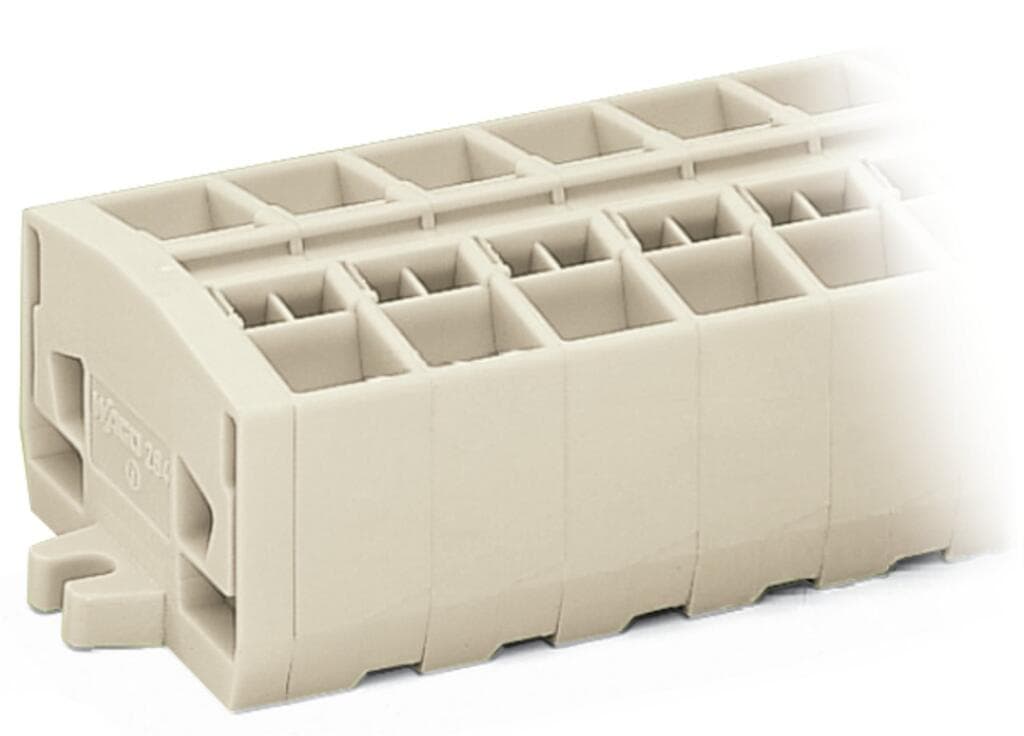

264-240
Key Features
- 1Suitable for Ex e II Applications: Designed for hazardous environments with high safety standards.
- 210-Pole Configuration: Provides 40 connection points for efficient wiring management.
- 3CAGE CLAMP Technology: Fast, vibration-proof, and maintenance-free connection method.
- 4Fixing Flanges Included: Easy screw or similar mounting types ensure secure installation.
- 5Light Gray Color: Durable and easy-to-spot in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 40 | Total number of potentials | 10 |
| Number of levels | 1 | Width | 116?mm?/ 4.567?inches |
| Height from the surface | 22.1?mm?/ 0.87?inches | Depth | 32?mm?/ 1.26?inches |
| Module width | 10?mm?/ 0.394?inches | Design | horizontal type |
| Mounting type | Mounting flange | Marking level | Center marking |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 1.196MJ |
| Halogen-free | Yes | Weight | 66g |
| Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-06 |
| eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
| ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918415743 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 690V |
| Rated current (Ex e II) | 23A | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Note (conductor cross-section) | 12 AWG: THHN, THWN | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Number of poles | 10 | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
