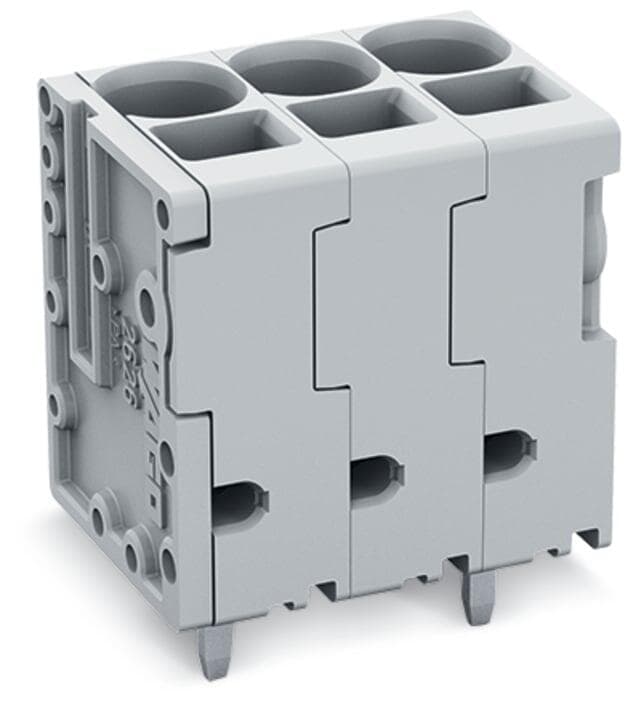

Product Model
2626-3102/020-006
Key Features
- 1Easy Installation: Push-in CAGE CLAMP connection for quick and secure conductor insertion.
- 2High Performance: Rated for 38 A at 600 V, suitable for demanding industrial applications.
- 3Versatile Connectivity: Compatible with solid and ferruled conductors, including fine-stranded conductors.
- 4Durable Design: Made from high-quality materials like polyamide insulation and chrome nickel spring steel.
- 5CAD Compatibility: Available in 2D/3D models for seamless integration into PCB designs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 2 |
| Total number of potentials | 2 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 7.5?mm?/ 0.295?inches |
| Width | 16.8?mm?/ 0.661?inches | Height | 28.2?mm?/ 1.11?inches |
| Height from the surface | 24.2?mm?/ 0.953?inches | Depth | 18.5?mm?/ 0.728?inches |
| Solder pin length | 4mm | Solder pin dimensions | 1.5 x 1?mm |
| Drilled hole diameter with tolerance | 2(+0.1)mm | Mounting type | Feed-through mounting |
| PCB contact | THT | Solder pin arrangement | over the entire terminal strip (staggered) |
| Number of solder pins per potential | 1 | Note (material data) | Information on material specifications can be found here |
| Color | blue | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Fire load | 0.022MJ |
| Weight | 8g | Limit temperature range | -60 … +105?°C |
| Processing temperature | -35 … +60?°C | Continuous operating temperature | -60 … +105?°C |
| ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 99 pcs |
| Packaging type | box | Country of origin | PL |
| GTIN | 4066966505726 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
| Rated voltage (III/2) | 1000V | Rated surge voltage (III/2) | 8kV |
| Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 8kV |
| Rated current | 48A | Approvals per | CSA |
| Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 38A |
| Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 38A |
| Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 31A |
| Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 31A |
| Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
| Solid conductor | 0.2 … 10?mm2?/ 24 … 8?AWG | Fine-stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 6?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 6?mm2 |
| Fine-stranded conductor; with twin ferrule | 0.25 … 2.5?mm2 | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
| Conductor connection direction to PCB | 90° |
Specifications may be subject to change without notice
