Product Model

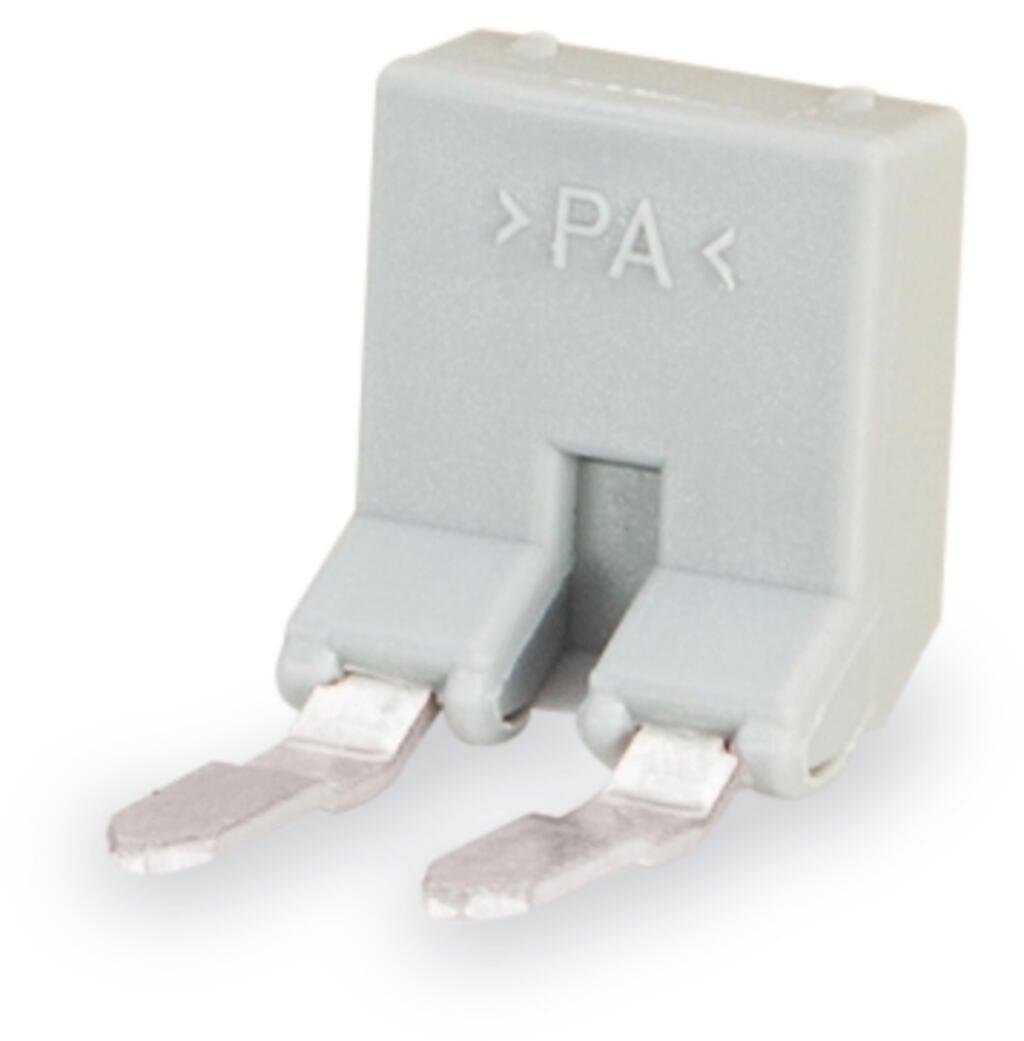

262-402
Key Features
- 1Insulated design for safe electrical connections.
- 22-way configuration for versatile applications.
- 3Reduces conductor size to 2.5 mm for efficient use.
- 4Gray color for easy identification in electrical systems.
- 5Rated current of 16A for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 12?mm?/ 0.472?inches | Height | 10?mm?/ 0.394?inches |
| Depth | 5?mm?/ 0.197?inches | Jumper assignment | 1-2 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.01MJ |
| Weight | 0.9g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 9 (Std Chassis Mt Blocks) |
| eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 500?(25)?pcs |
| Packaging type | box | Country of origin | PL |
| GTIN | 4045454342463 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated current | 16A |
Specifications may be subject to change without notice
