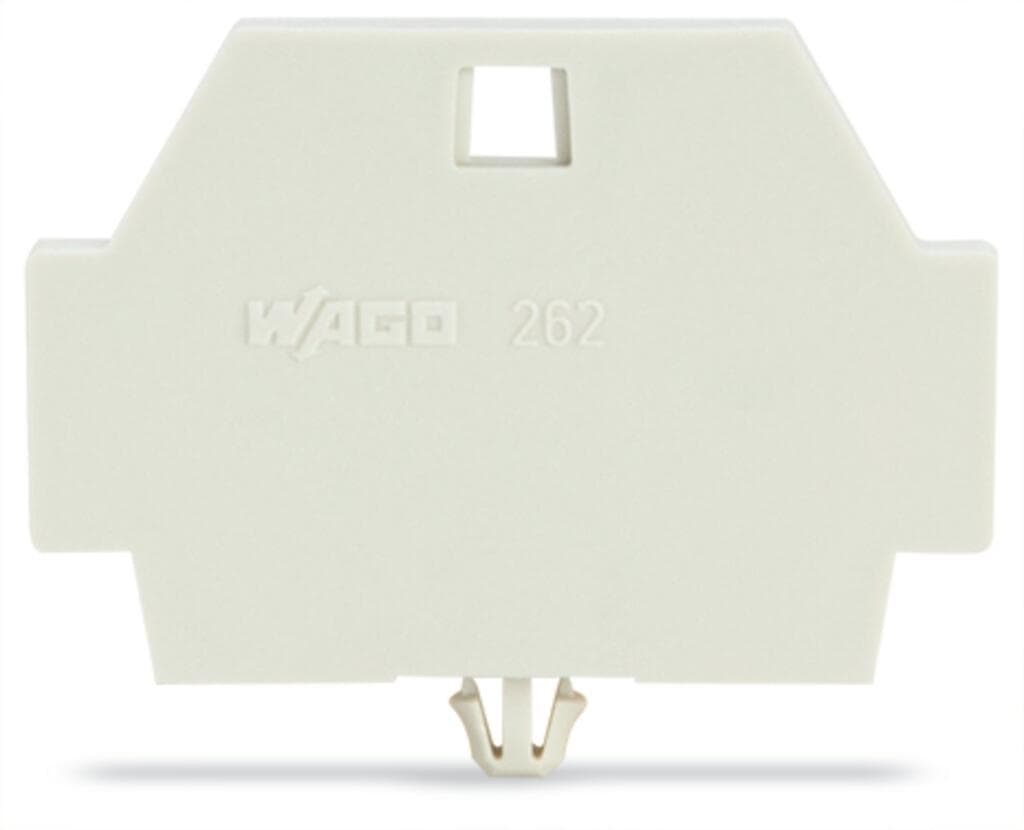

Product Model
262-373
Key Features
- 1Easy installation with snap-in mounting feet for quick and secure terminal block placement.
- 2Handles up to 24 A, making it suitable for demanding electrical applications.
- 3Supports conductors from AWG 28 to 12, accommodating various wire sizes.
- 4Built with high-quality materials for long-lasting performance and reliability.
- 5Compatible with WAGO's marking systems for clear identification and organization.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 3?mm?/ 0.118?inches | Height | 23?mm?/ 0.906?inches |
| Depth | 33.4?mm?/ 1.315?inches | Note (material data) | Information on material specifications can be found here |
| Color | light gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.048MJ | Weight | 1.6g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 200?(50)?pcs | Packaging type | box |
| Country of origin | CH | GTIN | 4017332199476 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
