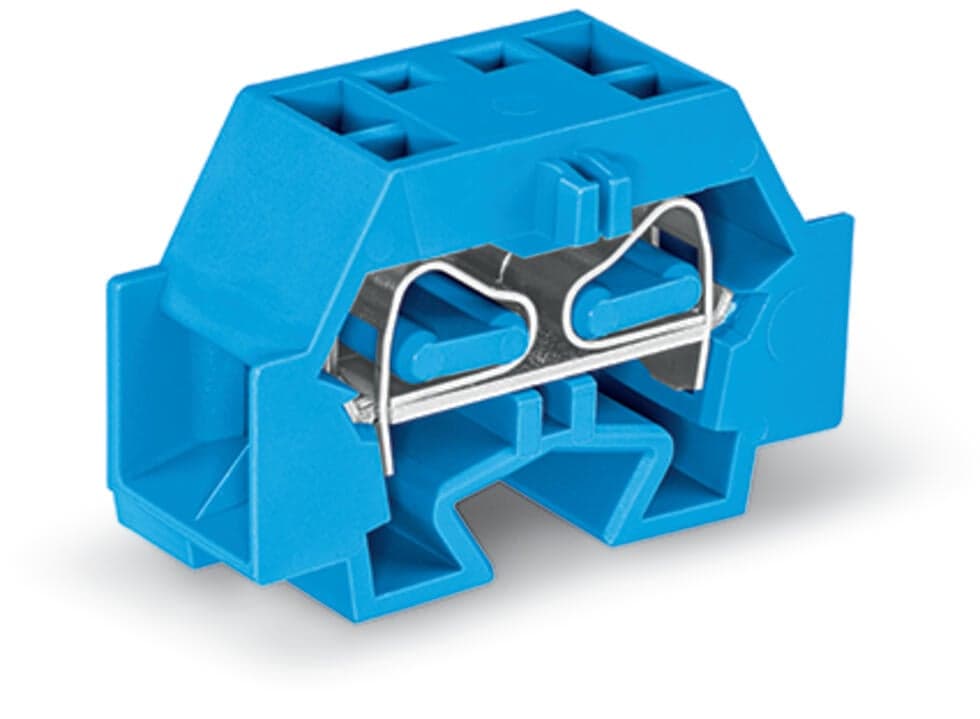

Product Model
262-344
Key Features
- 1Secure conductor connections with snap-in mounting feet.
- 2Suitable for various industrial applications including control circuits and automation.
- 3High-quality insulation for reliable electrical performance.
- 4Easy to install and use, reducing setup time.
- 5Compatible with a range of conductor sizes up to 2.5 mm².
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 4 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 12?mm?/ 0.472?inches |
| Height from the surface | 23.1?mm?/ 0.909?inches | Depth | 33.5?mm?/ 1.319?inches |
| Design | horizontal type | Mounting type | Snap-in foot |
| Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
| Color | blue | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.111MJ | Halogen-free | Yes |
| Weight | 6.9g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 9 (Std Chassis Mt Blocks) |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(50)?pcs |
| Packaging type | box | Country of origin | CN |
| GTIN | 4044918638937 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 690V |
| Rated impulse voltage (III / 3) | 8kV | Rated current | 32A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
| Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 20A |
| Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 20A |
| Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
| Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 5A |
| Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 25A |
| Rated voltage CSA (Use Group D) | 600V | Rated current CSA (Use Group D) | 5A |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
| Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
