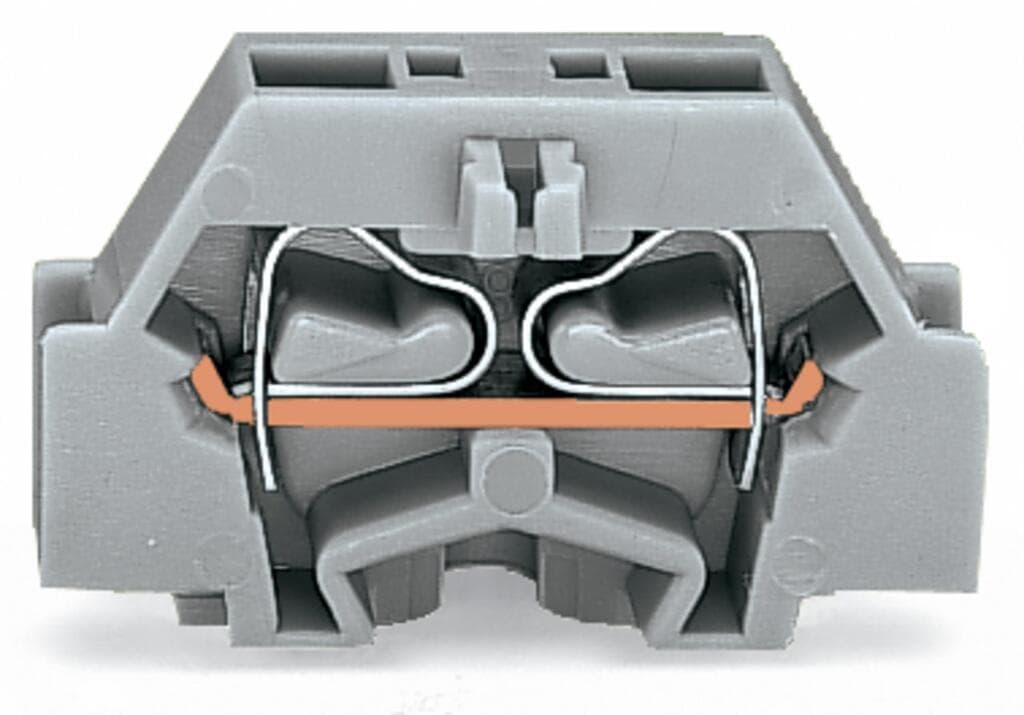

Product Model
261-323
Key Features
- 1Space-Saving Design: Compact and efficient, perfect for tight spaces.
- 2Push-Button Actuation: Easy to operate with a simple push-button mechanism.
- 3Cage Clamp Technology: Securely connects conductors without protruding snap-in mounting foot.
- 4Light Gray Color: Durable and visually appealing light gray finish.
- 5Versatile Application: Suitable for terminal strips with snap-in mounting feet, ideal for various electrical projects.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 6?mm?/ 0.236?inches |
| Height from the surface | 18.1?mm?/ 0.713?inches | Depth | 28.1?mm?/ 1.106?inches |
| Design | horizontal type | Mounting type | Snap-in foot |
| Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
| Color | light gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.033MJ | Halogen-free | Yes |
| Weight | 2.2g | Product Group | 9 (Std Chassis Mt Blocks) |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 200?(50)?pcs |
| Packaging type | box | Country of origin | CH |
| GTIN | 4044918619288 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 500V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 24A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
| Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 15A |
| Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 15A |
| Rated voltage UL (Use Group D) | 600V | Rated current UL (Use Group D) | 5A |
| Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 10A |
| Rated voltage CSA (Use Group D) | 600V | Rated current CSA (Use Group D) | 5A |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Number of poles | 1 | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
