Product Model

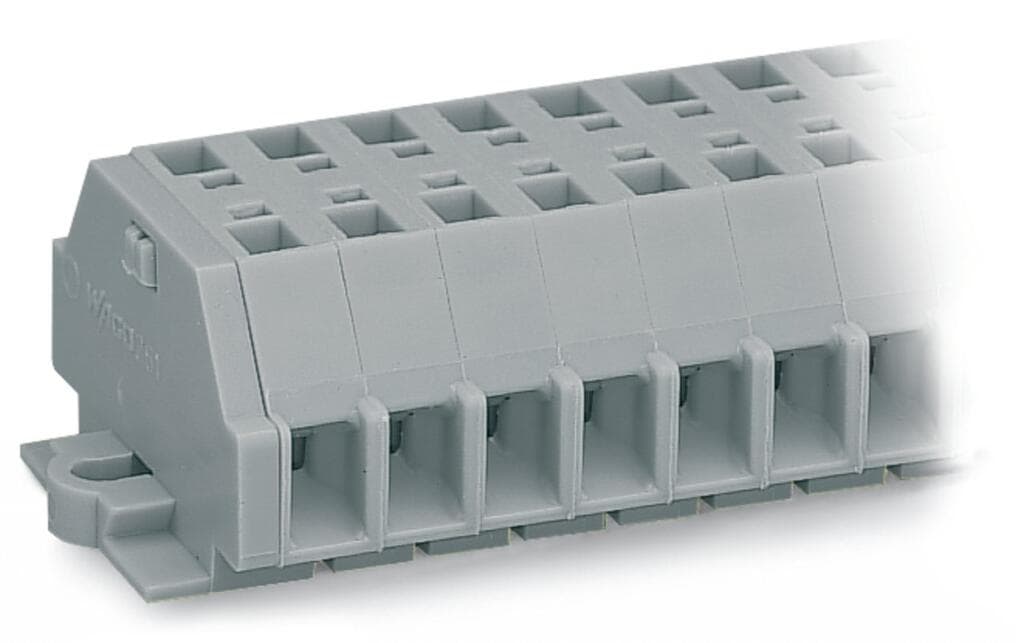

261-111
Key Features
- 1Efficient Electrical Connections: The WAGO 261-111 terminal strip ensures secure and efficient connections with its CAGE CLAMP technology.
- 2Versatile Mounting Options: Suitable for screw or similar mounting types, providing flexibility in installation.
- 3High Current Capacity: Supports up to 24 A IEC current rating, making it reliable for various electrical applications.
- 4Durable Construction: Made from high-quality polyamide (PA66) for long-lasting performance.
- 5Easy to Use: Features fixing flanges and a fixing hole of 3.2 mm Ø for easy handling and mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 22 | Total number of potentials | 11 |
| Number of levels | 1 | Width | 80.1?mm?/ 3.153?inches |
| Height from the surface | 18.1?mm?/ 0.713?inches | Depth | 28.1?mm?/ 1.106?inches |
| Module width | 6?mm?/ 0.236?inches | Design | horizontal type |
| Mounting type | Mounting flange | Marking level | Side marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.495MJ |
| Halogen-free | Yes | Weight | 26.4g |
| Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-06 |
| eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
| ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918617352 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 24A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group C) | 300V |
| Rated current UL (Use Group C) | 15A | Rated voltage UL (Use Group D) | 600V |
| Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group C) | 300V |
| Rated current CSA (Use Group C) | 10A | Rated voltage CSA (Use Group D) | 600V |
| Rated current CSA (Use Group D) | 5A | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Number of poles | 11 |
| Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
