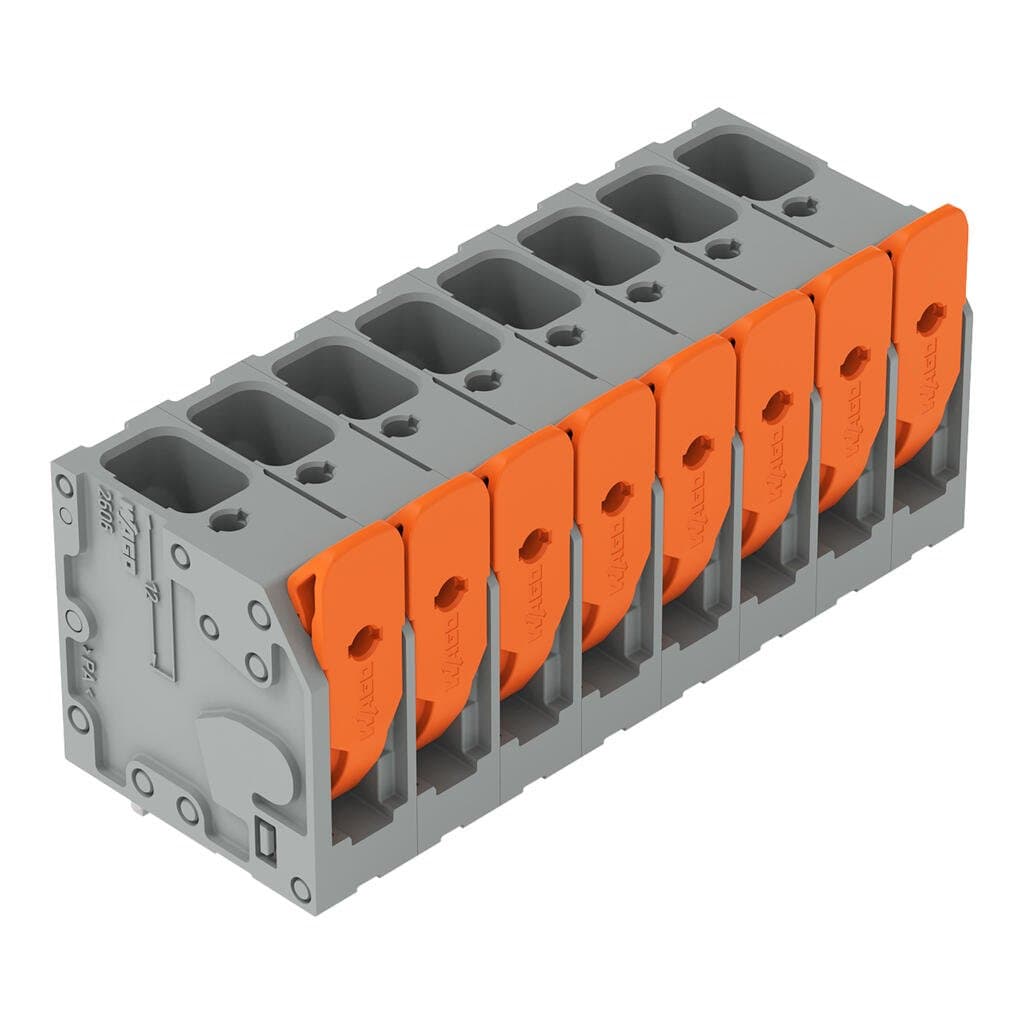

Product Model
2606-3108/020-000
Key Features
- 1High-quality, durable design for long-lasting performance.
- 2Secure and reliable connections in harsh industrial environments.
- 3Easy installation with minimal wiring effort required.
- 4Compatible with a wide range of industrial control systems.
- 5Meets or exceeds industry standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 8 |
| Total number of potentials | 8 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 7.5?mm?/ 0.295?inches |
| Width | 62.85?mm?/ 2.474?inches | Height | 31?mm?/ 1.22?inches |
| Height from the surface | 27?mm?/ 1.063?inches | Depth | 24?mm?/ 0.945?inches |
| Solder pin length | 4mm | Solder pin dimensions | 1.5 x 1.2?mm |
| Drilled hole diameter with tolerance | 2(+0.1)mm | PCB contact | THT |
| Solder pin arrangement | over the entire terminal strip (staggered) | Number of solder pins per potential | 1 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.28MJ | Actuator color | orange |
| Weight | 33.8g | Limit temperature range | -60 … +105?°C |
| Processing temperature | -35 … +60?°C | Continuous operating temperature | -60 … +105?°C |
| eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
| ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 30?pcs |
| Packaging type | box | Country of origin | PL |
| GTIN | 4055143586689 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
| Rated voltage (III/2) | 1000V | Rated surge voltage (III/2) | 8kV |
| Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 8kV |
| Rated current | 41A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 600V |
| Rated current UL (Use Group B) | 31A | Rated voltage UL (Use Group C) | 600V |
| Rated current UL (Use Group C) | 31A | Rated voltage CSA (Use Group B) | 600V |
| Rated current CSA (Use Group B) | 31A | Rated voltage CSA (Use Group C) | 600V |
| Rated current CSA (Use Group C) | 31A | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Lever | Solid conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
| Fine-stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 6?mm2 |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 … 6?mm2 | Fine-stranded conductor; with twin ferrule | 0.25 … 2.5?mm2 |
| Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches | Conductor connection direction to PCB | 90° |
| Number of poles | 8 |
Specifications may be subject to change without notice
