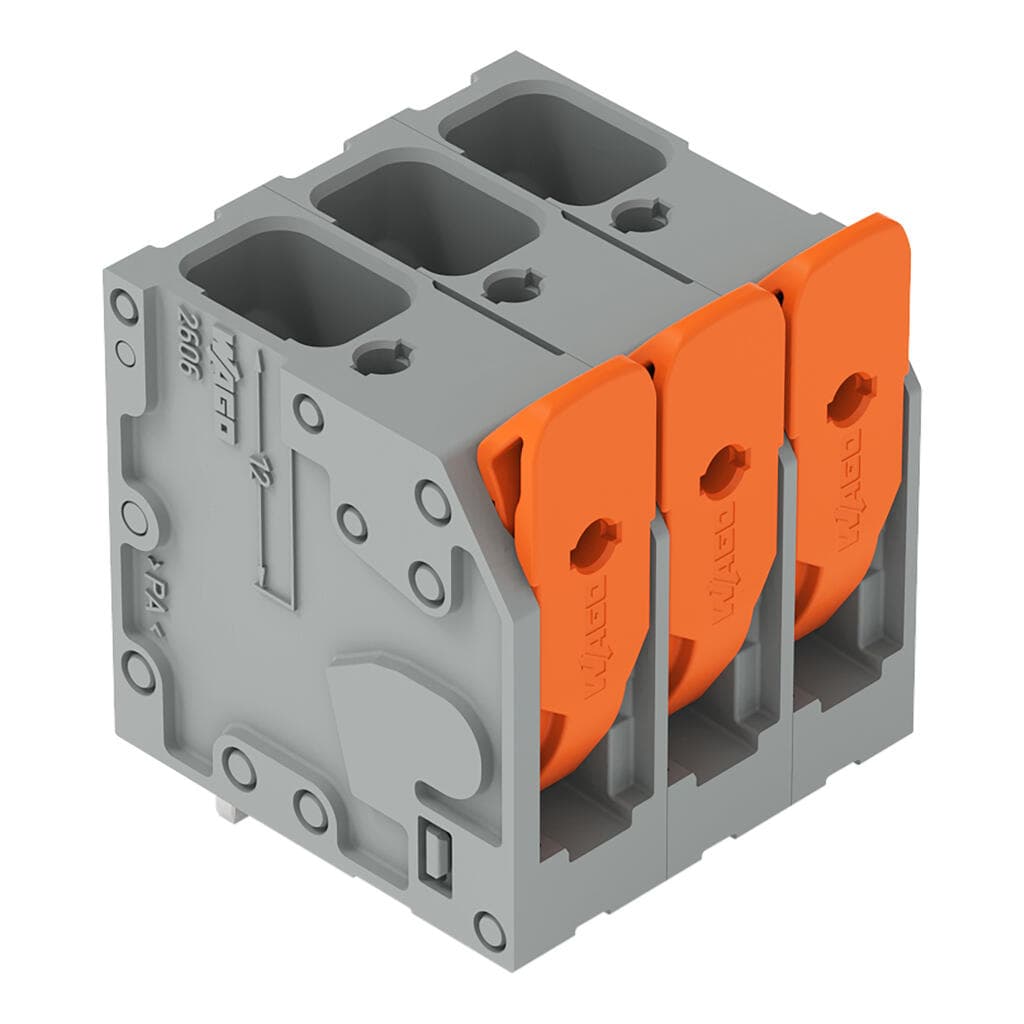

Product Model
2606-3103/010-000
Key Features
- 1High-quality electrical connectors designed for industrial use.
- 2Durable and reliable performance in harsh environments.
- 3Easy to install and maintain with simple plug-in connections.
- 4Suitable for a wide range of applications including automation and control systems.
- 5Meets international standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 3 |
| Total number of potentials | 3 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 7.5?mm?/ 0.295?inches |
| Width | 25.35?mm?/ 0.998?inches | Height | 31?mm?/ 1.22?inches |
| Height from the surface | 27?mm?/ 1.063?inches | Depth | 24?mm?/ 0.945?inches |
| Solder pin length | 4mm | Solder pin dimensions | 1.5 x 1.2?mm |
| Drilled hole diameter with tolerance | 2(+0.1)mm | PCB contact | THT |
| Number of solder pins per potential | 1 | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Fire load | 0.105MJ |
| Actuator color | orange | Weight | 13g |
| Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
| Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC002643 |
| ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 80?pcs | Packaging type | Box |
| Country of origin | PL | GTIN | 4066966210071 |
| Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 800V |
| Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
| Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
| Rated surge voltage (II/2) | 8kV | Rated current | 41A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
| Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 31A |
| Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 31A |
| Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 31A |
| Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 31A |
| Connection technology | Push-in CAGE CLAMP? | Actuation type | Lever |
| Solid conductor | 0.2 … 10?mm2?/ 24 … 8?AWG | Fine-stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 6?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 6?mm2 |
| Fine-stranded conductor; with twin ferrule | 0.25 … 2.5?mm2 | Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches |
| Conductor connection direction to PCB | 90° | Number of poles | 3 |
