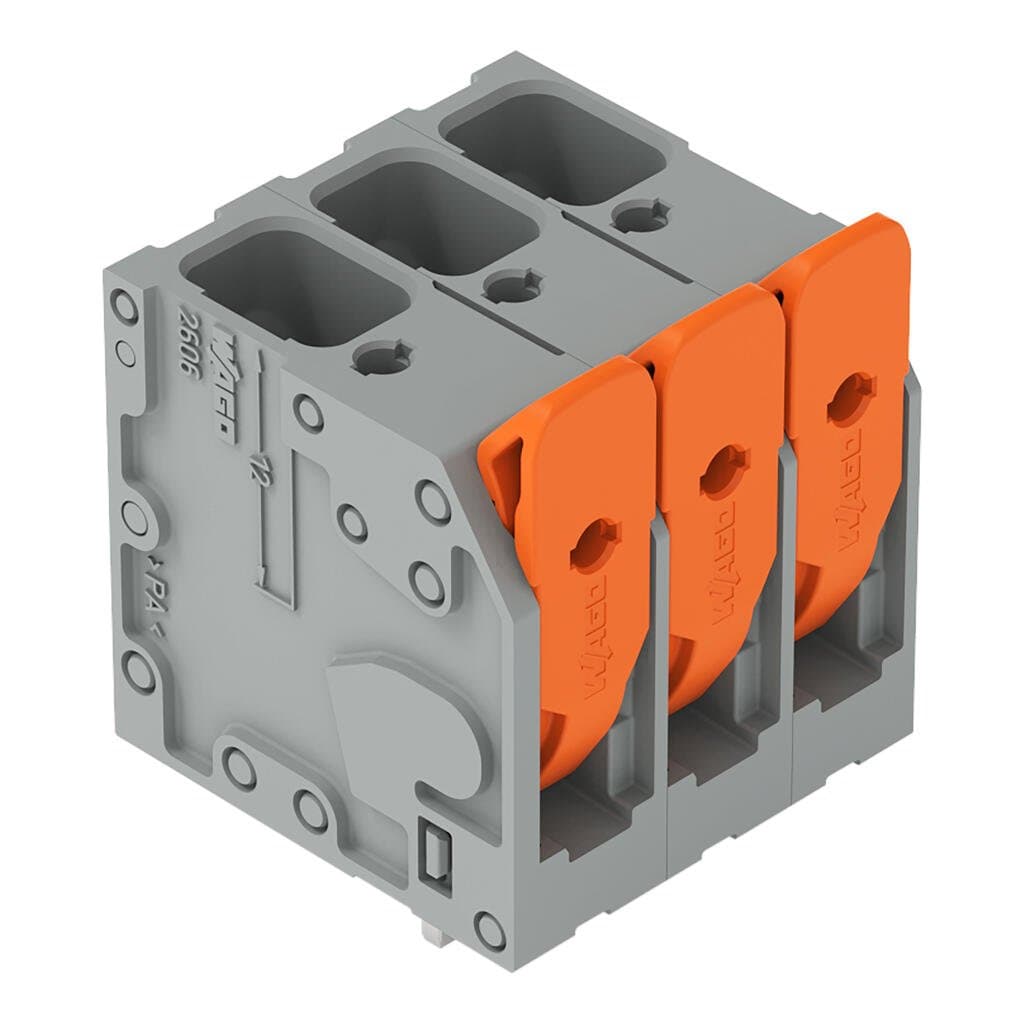

Product Model
2606-3103/000-004
Key Features
- 1High-performance connectivity for industrial automation.
- 2Durable design with long-lasting reliability.
- 3Versatile use in various industrial applications.
- 4Easy installation with minimal setup time.
- 5Compatible with a wide range of industrial systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 3 |
| Total number of potentials | 3 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 7.5 mm / 0.295 inches |
| Width | 25.35 mm / 0.998 inches | Height | 31 mm / 1.22 inches |
| Height from the surface | 27 mm / 1.063 inches | Depth | 24 mm / 0.945 inches |
| Solder pin length | 4mm | Solder pin dimensions | 1.5 x 1.2 mm |
| Drilled hole diameter with tolerance | 2(+0.1)mm | PCB contact | THT |
| Solder pin arrangement | over the entire terminal strip (staggered) | Number of solder pins per potential | 1 |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Fire load | 0.29MJ |
| Actuator color | orange | Weight | 13.8g |
| Limit temperature range | -60 … +105 °C | Processing temperature | -35 … +60 °C |
| Continuous operating temperature | -60 … +105 °C | ETIM 9.0 | EC002643 |
| ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 64 pcs | Packaging type | Box |
| Country of origin | PL | GTIN | 4066966477160 |
| Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 800V |
| Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
| Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
| Rated surge voltage (II/2) | 8kV | Rated current | 41A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
| Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 31A |
| Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 31A |
| Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 31A |
| Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 31A |
| Connection technology | Push-in CAGE CLAMP? | Actuation type | Lever |
| Solid conductor | 0.2 … 10 mm2 / 24 … 8 AWG | Fine-stranded conductor | 0.2 … 10 mm2 / 24 … 8 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 6 mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 6 mm2 |
| Fine-stranded conductor; with twin ferrule | 0.25 … 2.5 mm2 | Strip length | 11 … 13 mm / 0.43 … 0.51 inches |
| Conductor connection direction to PCB | 90° | Number of poles | 3 |
| Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
| Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
| Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
| Test duration per axis | 5 h | Test directions | X, Y and Z axes |
| Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
| Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
| Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
| Shock form | Half sine | Shock duration | 30 ms |
| Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
