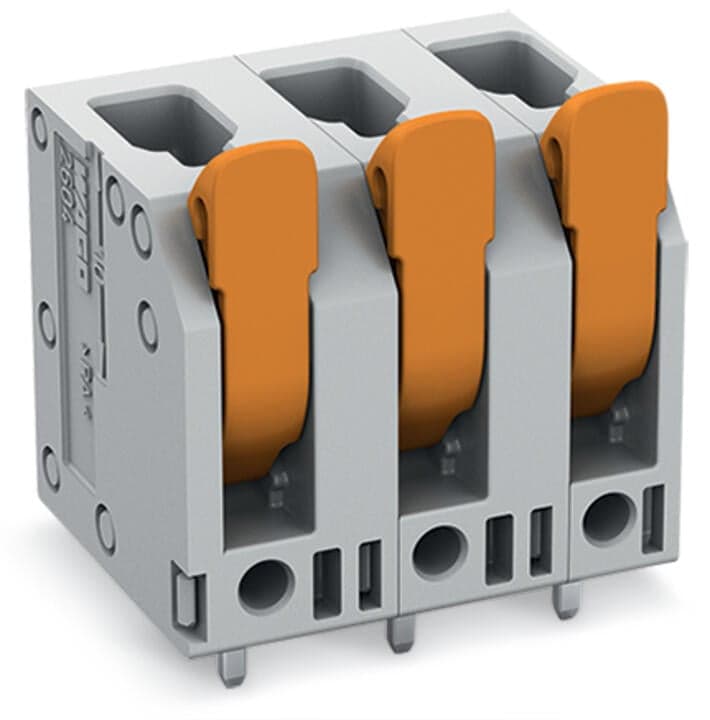

Product Model
2604-3303
Key Features
- 1Supports up to 32A current, ideal for power electronics applications.
- 2Push-in CAGE CLAMP technology allows for tool-free and intuitive operation.
- 3Constructed with chrome-nickel spring steel and tin-plated contacts for long-lasting performance.
- 4Compatible with various conductor types, including solid, ferruled, and rigid-stranded conductors.
- 5Tested both parallel and perpendicular to conductor entry for secure and stable connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 3 |
| Total number of potentials | 3 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 7.5?mm?/ 0.295?inches |
| Width | 22.4?mm?/ 0.882?inches | Height | 25.3?mm?/ 0.996?inches |
| Height from the surface | 21.3?mm?/ 0.839?inches | Depth | 16.7?mm?/ 0.657?inches |
| Solder pin length | 4mm | Solder pin dimensions | 0.8 x 1?mm |
| Drilled hole diameter with tolerance | 1.3(+0.1)mm | PCB contact | THT |
| Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.079MJ | Actuator color | orange |
| Weight | 5.9g | Limit temperature range | -60 … +105?°C |
| Processing temperature | -35 … +60?°C | Continuous operating temperature | -60 … +105?°C |
| eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
| ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 90 pcs |
| Packaging type | box | Country of origin | PL |
| GTIN | 4066966435405 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 630V | Rated impulse voltage (III / 3) | 6kV |
| Rated voltage (III/2) | 1000V | Rated surge voltage (III/2) | 6kV |
| Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
| Rated current | 32A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 20A | Rated voltage UL (Use Group C) | 300V |
| Rated current UL (Use Group C) | 20A | Rated voltage UL (Use Group D) | 600V |
| Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 20A | Rated voltage CSA (Use Group C) | 300V |
| Rated current CSA (Use Group C) | 20A | Rated voltage CSA (Use Group D) | 600V |
| Rated current CSA (Use Group D) | 5A | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Lever | Solid conductor | 0.2 … 4?mm2?/ 24 … 12?AWG |
| Fine-stranded conductor | 0.2 … 4?mm2?/ 24 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2 |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2 | Fine-stranded conductor; with twin ferrule | 0.25 … 1.5?mm2 |
| Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Conductor connection direction to PCB | 90° |
| Number of poles | 3 |
Specifications may be subject to change without notice
