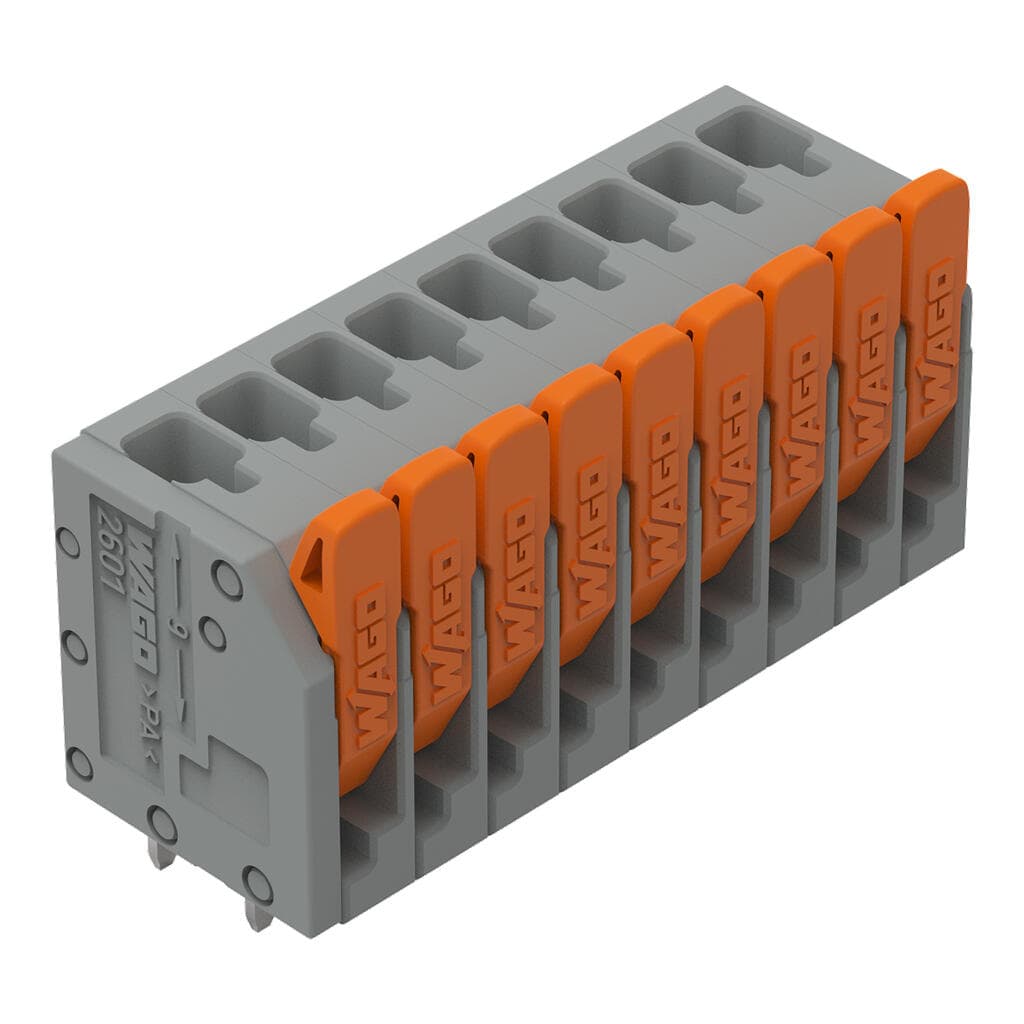

Product Model
2601-3109
Key Features
- 1Super-compact PCB terminal block with lever technology, requiring minimal space on the board.
- 2Easy and efficient wiring for cross-sections from 26 to 16 AWG (0.14 to 1.5 mm²) without tools.
- 3Constructed from durable polyamide with tin-plated contacts for reliable connections.
- 4Through-hole vertical mounting method for horizontal or vertical connections to the PCB.
- 5Operating temperature range of -60°C to +105°C and rated for 17.5A at 320V.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 9 |
| Total number of potentials | 9 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
| Width | 33?mm?/ 1.299?inches | Height | 20.2?mm?/ 0.794?inches |
| Height from the surface | 16.6?mm?/ 0.653?inches | Depth | 12.8?mm?/ 0.502?inches |
| Solder pin length | 3.6mm | Solder pin dimensions | 1 x 0.5?mm |
| Drilled hole diameter with tolerance | 1.2(+0.1)mm | PCB contact | THT |
| Solder pin arrangement | Over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.133MJ | Actuator color | orange |
| Weight | 7.1g | Limit temperature range | -60 … +105?°C |
| Processing temperature | -35 … +60?°C | Continuous operating temperature | -60 … +105?°C |
| ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 60?pcs |
| Packaging type | Box | Country of origin | PL |
| GTIN | 4066966242980 | Customs tariff number | 85369010000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 160V | Rated impulse voltage (III / 3) | 2.5kV |
| Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
| Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 2.5kV |
| Rated current | 17.5A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 10A | Rated voltage CSA (Use Group D) | 300V |
| Rated current CSA (Use Group D) | 10A | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Lever | Solid conductor | 0.14 … 2.5 mm2 / 26 … 14 AWG |
| Solid conductor; push-in termination | 0.14 … 2.5 mm2 / 26 … 14 AWG | Fine-stranded conductor | 0.14 … 2.5 mm2 / 26 … 14 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 |
| Note (conductor cross-section) | For conductors (26 AWG) that are not rigid enough, the clamping unit must be opened using a lever. | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Conductor connection direction to PCB | 90° | Number of poles | 9 |
Specifications may be subject to change without notice
