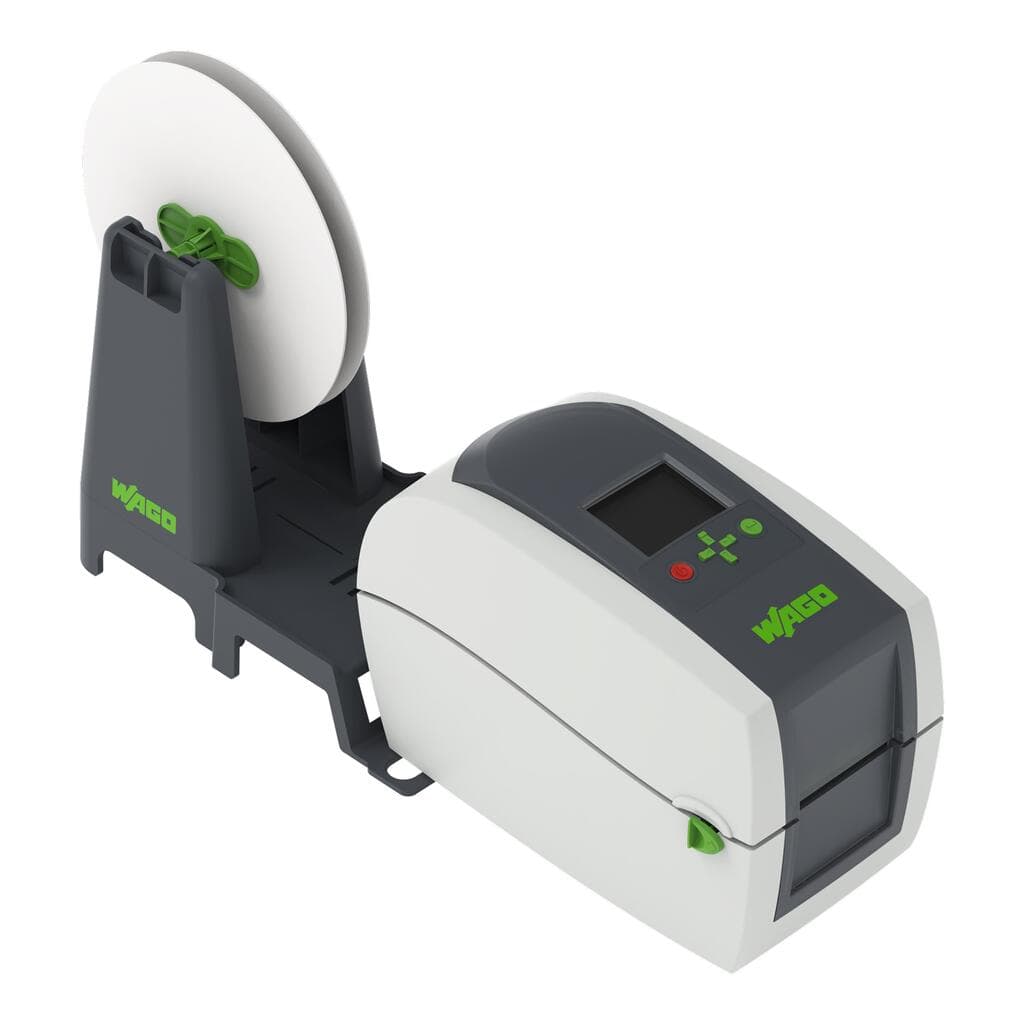

Product Model
258-5108
Key Features
- 1300 dpi print resolution for clear and precise labeling.
- 2Supports markers for terminal blocks, wires, cables, and other control cabinet components.
- 3Intuitive marking app for quick adjustments on site via Bluetooth.
- 4Programmable using included software with various fonts and barcodes.
- 5Built with a glass layer print head and robust construction for long-lasting use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Memory | 8,192MB | Supported operating systems | Windows 7 |
| Print head | Glass layer, spring-mounted | Print resolution | 300 dpi (12 pixels/mm) |
| Print speed | Max. 127 mm/s (WAGO recommends 50.8 mm/s) | Print width | 47mm |
| Print length (max.) | 762mm | See-through/reflective sensor | Yes, centrally mounted |
| Interfaces | USB type A, (for BT and WiFi connection), USB type B (for PC connection), RS-232, ETHERNET 10/100 Mbps | Operating voltage | 100 … 240 VAC, 50 … 60 Hz (automatic adjustment) |
| Safety approvals | CE (EMC) | Operating display | Color TFT LCD with navigation button |
| Ink ribbon | External roll diameter: 40 mm; Internal core diameter: 12.7 mm (0.5 inch); Max. length: 110 m; Max. width: 58 mm | Ink ribbon length | 360.9 |
| Scope of delivery | Power supply + cable, 2 rollers (258-5006 + 258-5007), 1 roller holder, 1 ink ribbon (258-5005), Smart Script marking software and driver, USB cable, external unwinder, 1 empty cardboard core | Height | 175 mm / 6.89 inches |
| Width | 135 mm / 5.315 inches | Depth | 245 mm / 9.646 inches |
| Weight | 3404g | Ambient temperature (storage) | -20 … +50 °C |
| Ambient temperature (operation) | +5 … +40 °C | ETIM 9.0 | EC000610 |
| ETIM 8.0 | EC000610 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1 pcs | Packaging type | Box |
| Country of origin | DE | GTIN | 4066966520835 |
| Customs tariff number | 84433210000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
