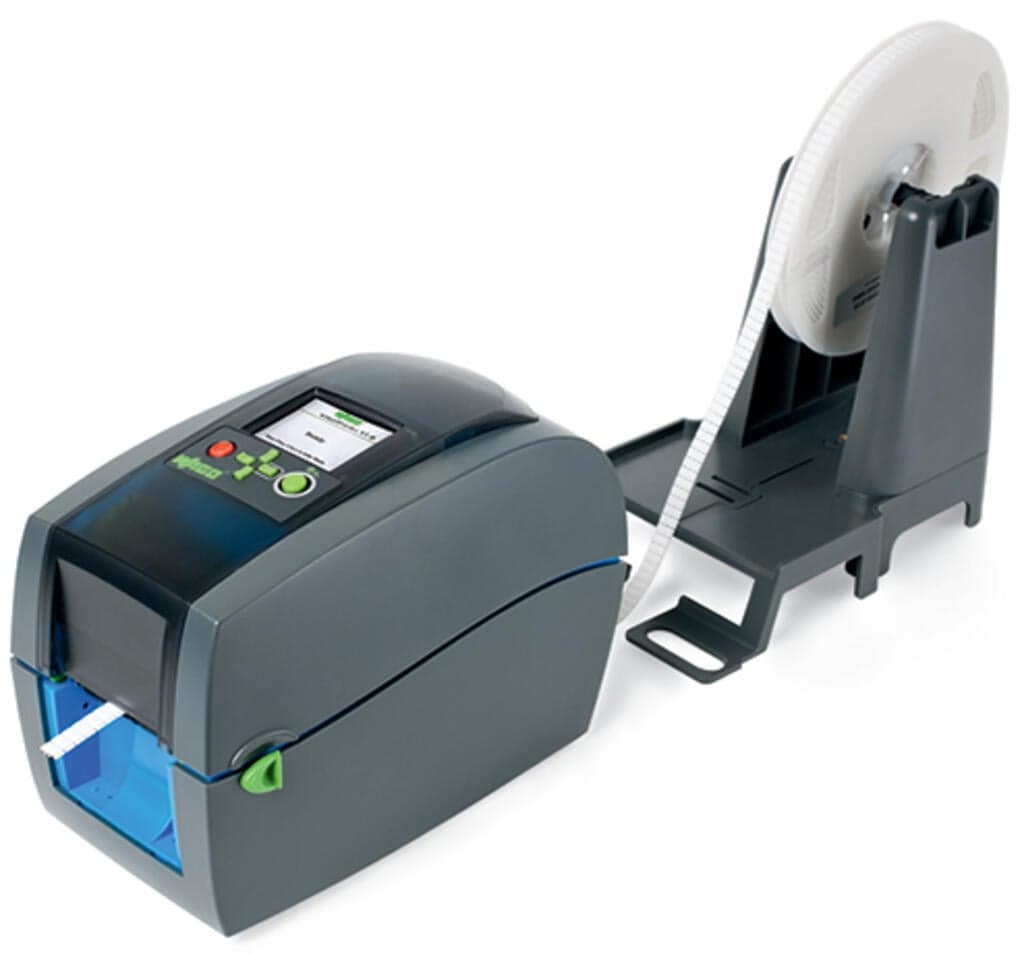

Product Model
258-5001
Key Features
- 1High-Quality Thermal Transfer Printing: Achieve precise and durable markings with the 300 dpi print resolution.
- 2Smart Printer for Control Cabinets: Seamlessly integrate into various control cabinet marking applications.
- 3Color TFT LCD Display: Easily navigate and monitor print operations with a color TFT LCD display.
- 4Versatile Interfaces: Connect via USB, RS-232, and Ethernet 10/100 Mbps for flexible integration.
- 5Robust Design and Durability: Built with a glass layer print head and designed for reliable operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Memory | 8,192MB | Supported operating systems | Windows 11 |
| Marking method | Thermal transfer | Print head | Glass layer, spring-mounted |
| Print resolution | 300?dpi (12 pixels/mm) | Print speed | Max. 127 mm/s (WAGO recommends 50.8 mm/s) |
| Recommended print speed | 50 | Print speed (max.) | 127 |
| Print width | 47mm | Print length (max.) | 762mm |
| See-through/reflective sensor | Yes, centrally mounted | Marking software | Smart Script |
| Interfaces | USB, RS-232, ETHERNET 10/100 Mbps | Operating voltage | 100?…?240?VAC, 50?…?60?Hz (automatic adjustment) |
| Safety approvals | CE (EMC) | Operating display | Color TFT LCD with navigation button |
| Ink ribbon | External roll diameter: 40 mm; Internal core diameter: 12.7 mm (0.5 inch); Max. length: 110 m; Max. width: 58 mm | Ink ribbon width | 46?mm?/ 1.811?inches |
| Ink ribbon length | 74?m?/ 360.9 | Ink ribbon external roll diameter | 33?mm?/ 1.299?inches |
| Ink ribbon internal core diameter | 12.5?mm?/ 0.492?inches | Scope of delivery | Power supply + cable, 2 rollers (258-5006 + 258-5007), 1 roller holder, 1 ink ribbon (258-5005), Smart Script marking software and driver, USB cable, external unwinder, 1 empty cardboard core |
| Height | 175?mm?/ 6.89?inches | Width | 135?mm?/ 5.315?inches |
| Depth | 245?mm?/ 9.646?inches | Weight | 3467g |
| Ambient temperature (storage) | -20 … +50 °C | Ambient temperature (operation) | +5 … +40 °C |
| ETIM 9.0 | EC000610 | ETIM 8.0 | EC000610 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | TW |
| GTIN | 4066966148145 | Customs tariff number | 84433210000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
