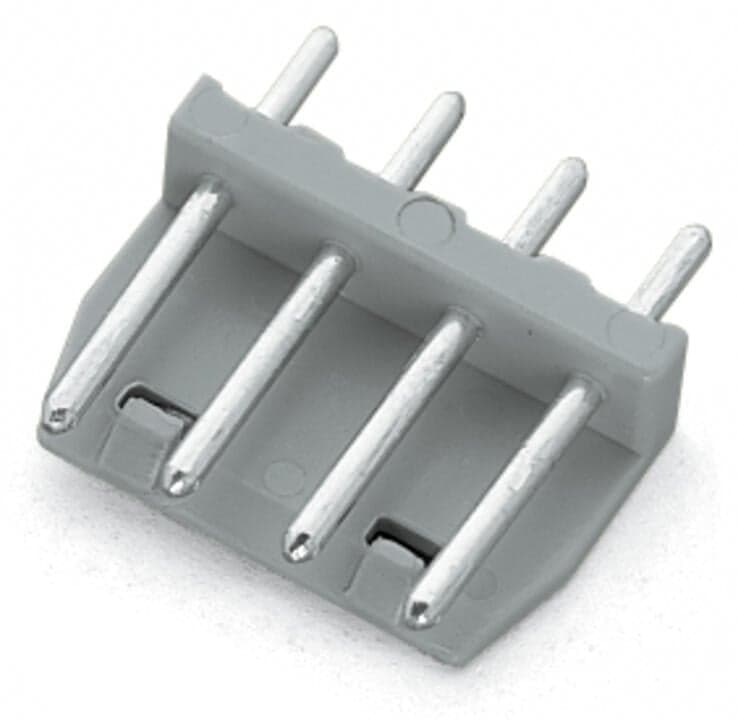

Product Model
252-954
Key Features
- 1Secure PCB connections with a locking lever.
- 23.5 mm pin spacing for precise alignment.
- 34-pole configuration for reliable connectivity.
- 4Gray color for easy identification in electronic assemblies.
- 5Suitable for applications requiring a locking function.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
| Solder pin length | 3.5mm | Solder pin diameter | 1mm |
| Drilled hole diameter with tolerance | 1.2(+0.05)mm | Suitable | with locking function |
| Contact type (pluggable connector) | Male connector/plug | Connector (connection type) | for PCB |
| Mating direction to the PCB | 90° | Locking of plug-in connection | locking lever |
| PCB contact | THT | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.005MJ | Weight | 0.5g |
| Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1000?pcs | Packaging type | box |
| Country of origin | CH | GTIN | 4045454698188 |
| Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
| Number of poles | 4 |
Specifications may be subject to change without notice
