Product Model

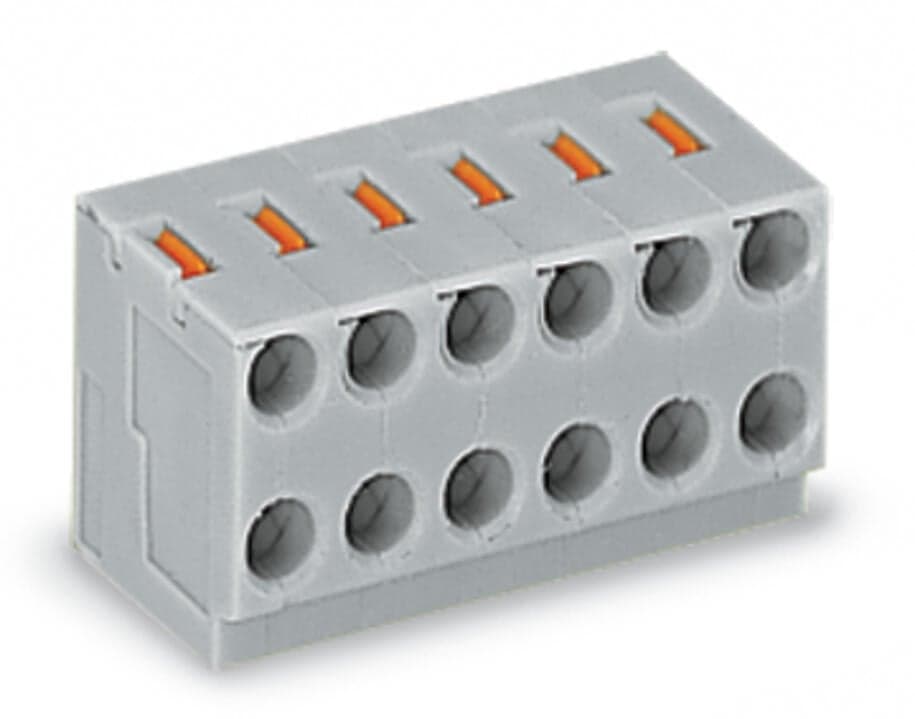

252-106
Key Features
- 1Compact Design: The WAGO 252-106 features a compact design with dimensions of 21 mm width, 11 mm height, and 10.5 mm depth.
- 2Push-Button Actuation: Equipped with push-button actuation for easy conductor removal and insertion.
- 3PUSH WIRE Connection: Supports PUSH WIRE connection for solid conductors, ensuring secure and reliable connections.
- 4High Current Rating: Rated for 2 A current, suitable for various power supply and distribution applications.
- 5Durable Materials: Constructed with polyamide (PA66) insulation and electrolytic copper contacts for durability and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 12 |
| Total number of potentials | 6 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
| Width | 21?mm?/ 0.827?inches | Height | 11?mm?/ 0.433?inches |
| Depth | 10.5?mm?/ 0.413?inches | Contact type (pluggable connector) | Female connector/socket |
| Connector (connection type) | for PCB | Plugging without loss of pin spacing | Yes |
| Mating direction to the rail-mount terminal block | 90° | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Clamping spring material | Copper alloy | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Fire load | 0.072MJ |
| Weight | 2.7g | Limit temperature range | -60 … +105?°C |
| Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-44-04-01 |
| eCl@ss 9.0 | 27-44-04-01 | ETIM 9.0 | EC002643 |
| ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 200?(100)?pcs | Packaging type | box |
| Country of origin | PL | GTIN | 4045454039745 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 320V |
| Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
| Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
| Rated surge voltage (II/2) | 4kV | Rated current | 2A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | UL 1059 |
| Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 2A |
| Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 2A |
| Connection technology | PUSH WIRE? | Actuation type | Push-button |
| Solid conductor | 0.14 … 0.5?mm2?/ 26 … 20?AWG | Conductor diameter | 0.4 … 0.8?mm?/ 26 … 20?AWG |
| Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Conductor connection direction to PCB | 0° |
| Number of poles | 6 |
Specifications may be subject to change without notice
