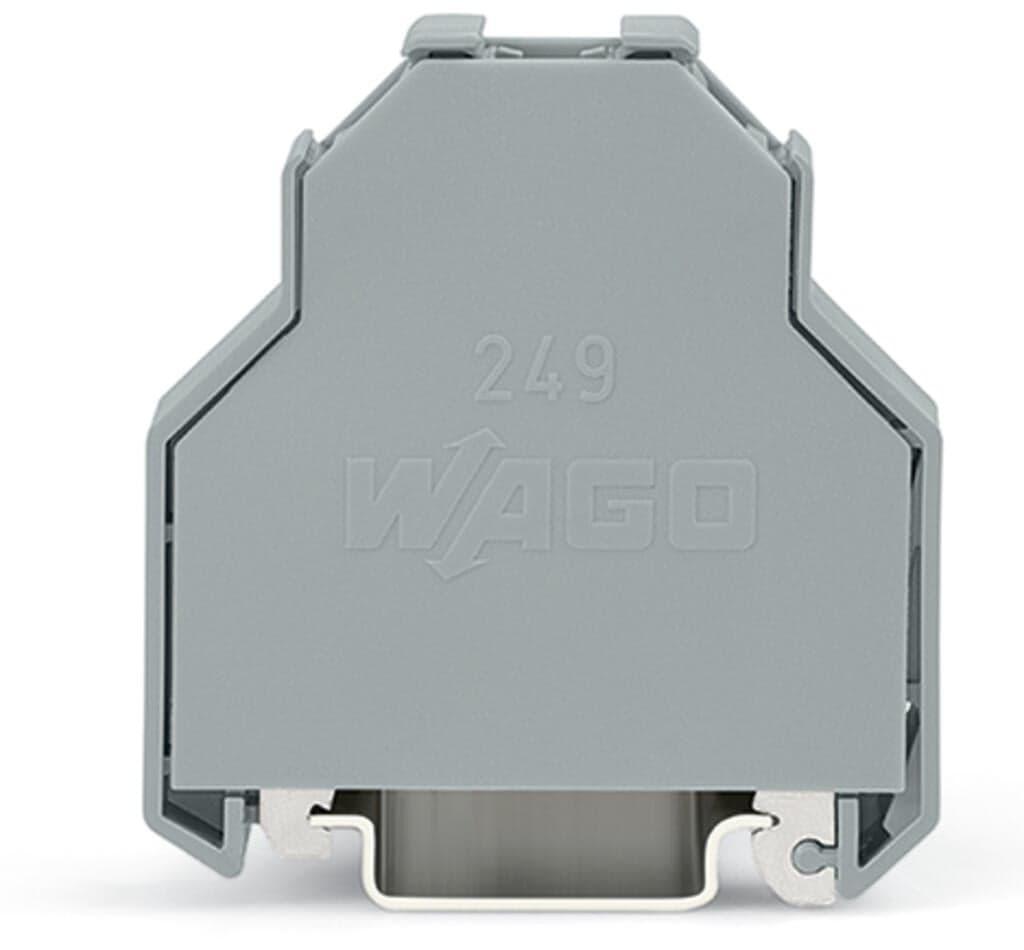

Product Model
249-197
Key Features
- 1Precision Design: 14 mm wide screwless end stop for precise DIN-rail mounting.
- 2Versatile Compatibility: Compatible with DIN-rail 35 x 15 and 35 x 7.5.
- 3Durable Construction: Made from high-quality materials for long-lasting performance.
- 4Easy Installation: Screwless design simplifies installation and reduces errors.
- 5Compliance Standards: Meets RoHS and UL94 V0 flammability class standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting type | DIN-35 rail | Width | 14?mm?/ 0.51?inches |
| Height | 60?mm?/ 2.362?inches | Depth | 67?mm?/ 2.638?inches |
| Depth from upper-edge of DIN-rail | 60?mm?/ 2.276?inches | Color | gray |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.586MJ | Weight | 21.9g |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-35 |
| eCl@ss 9.0 | 27-14-11-35 | ETIM 9.0 | EC001041 |
| ETIM 8.0 | EC001041 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 10?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4050821517535 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
