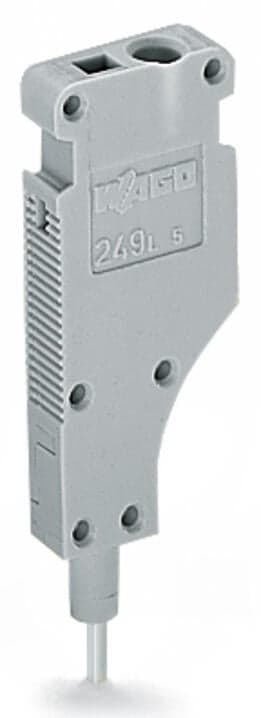

Product Model
249-142
Key Features
- 1Modular design for easy integration.
- 2Rigid contact pin ensures reliable connections.
- 3CAGE CLAMP technology for secure conductor insertion.
- 4Compatible with 1.5mm² connections.
- 5Gray color for easy identification in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | These test plugs are not suitable for Ex e applications. | Clamping units | 1 |
| Total number of potentials | 1 | Width | 5?mm?/ 0.197?inches |
| Module width | 5?mm?/ 0.197?inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.227MJ |
| Weight | 3.5g | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-14-11-48 | eCl@ss 9.0 | 27-14-11-48 |
| ETIM 9.0 | EC002555 | ETIM 8.0 | EC002555 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454193713 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Test voltage | 630V | Test current | 6A |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
| Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
