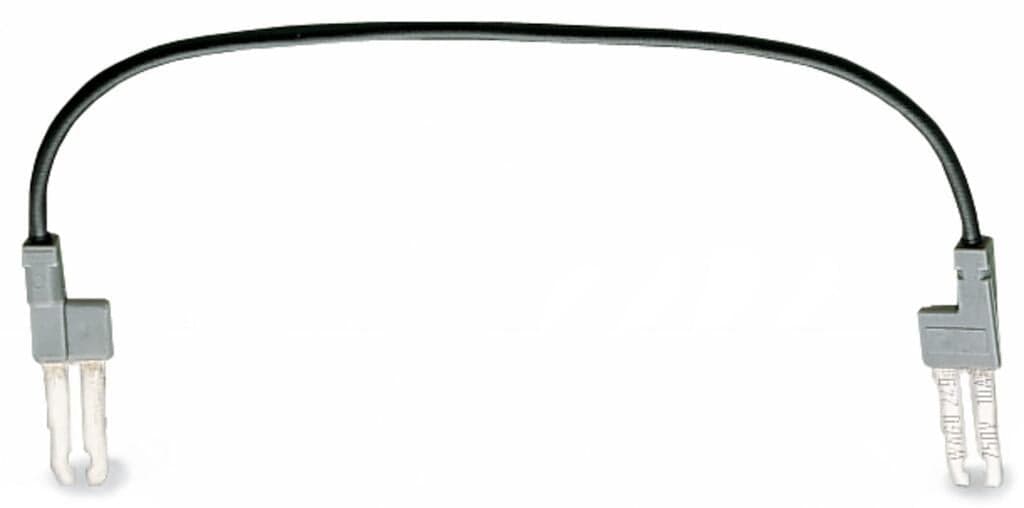

Product Model
249-126
Key Features
- 1Insulated for enhanced safety and durability.
- 2Compatible with 0.75 mm² conductor cross-section.
- 3110 mm wire length for versatile use.
- 4Push-in type for easy and secure connection.
- 5Ideal for various electrical applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | Push down the wire jumper until fully inserted! | Wire length of wire jumpers | 110mm |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Fire load | 0.019MJ | Weight | 2.5g |
| eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(10)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918786416 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 800V |
| Rated impulse voltage (III / 3) | 8kV | Rated current | 9A |
Specifications may be subject to change without notice
