Product Model

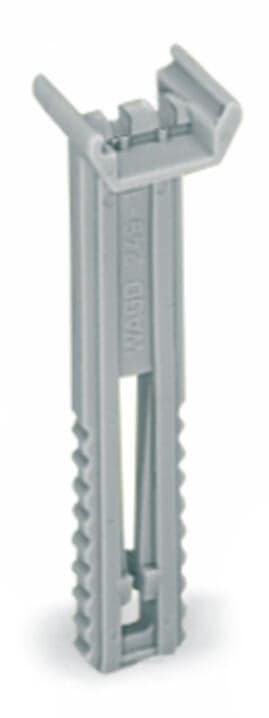

249-118
Key Features
- 1Adjustable height from 43.5 mm to 59.5 mm.
- 2Snap-on type for easy installation.
- 3Suitable for end stops (249-116 and 249-117) and 2 WMB markers or 1 continuous strip.
- 4Gray color with dimensions of 0.39 in W.
- 5RoHS compliant for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | for end stops (249?116 and 249?117); for 2 WMB markers or 1 continuous strip | Properties | snap-on type and adjustable in height from 43.5 mm to 59.5 mm |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Width | 10?mm?/ 0.394?inches | Color | gray |
| Weight | 1.3g | Fire load | 0.039MJ |
| Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-40-75 |
| eCl@ss 9.0 | 27-14-40-75 | ETIM 9.0 | EC002248 |
| ETIM 8.0 | EC002248 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332188388 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
