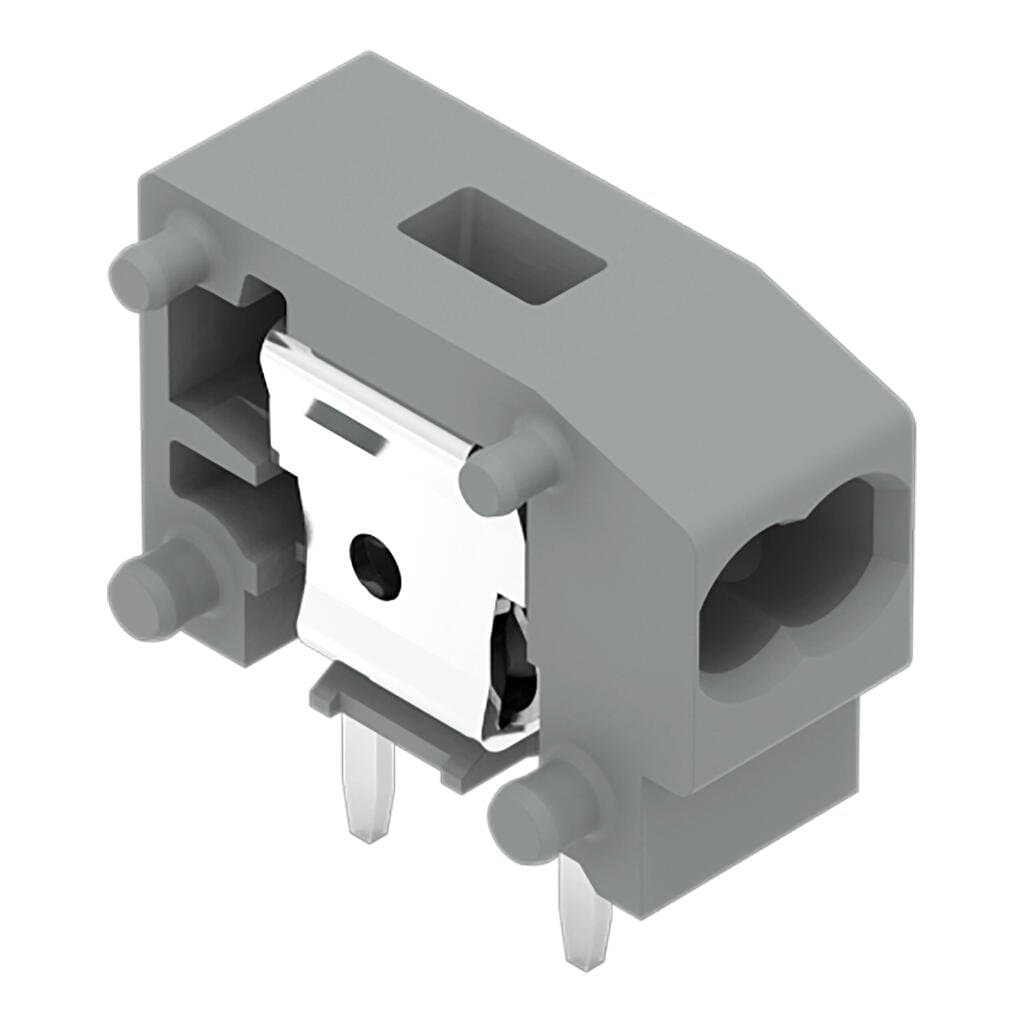

Product Model
235-711
Key Features
- 1Connect multiple terminal blocks easily.
- 2Secure wire connections with a simple push-button mechanism.
- 3Compact design fits in tight spaces.
- 4Handle two wires with a single terminal block.
- 5Durable construction for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other colors | Clamping units | 2 |
| Total number of potentials | 1 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 5/5.08?mm?/ 0.197/0.2?inches |
| Width | 6.5?mm?/ 0.256?inches | Height | 12.8?mm?/ 0.504?inches |
| Height from the surface | 9.2?mm?/ 0.362?inches | Depth | 12.5?mm?/ 0.492?inches |
| Solder pin length | 3.6mm | Solder pin dimensions | 0.8 x 0.4?mm |
| Drilled hole diameter with tolerance | 1(+0.1)mm | PCB contact | THT |
| Solder pin arrangement | within the terminal block (in-line) | Number of solder pins per potential | 2 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.011MJ | Weight | 0.7g |
| Limit temperature range | -60 … +105?°C | Product Group | 4 (Printed Circuit Connectors) |
| eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
| ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 800?(100)?pcs |
| Packaging type | box | Country of origin | CH |
| GTIN | 4044918831703 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 10A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 10A | Connection technology | PUSH WIRE? |
| Actuation type | Operating tool | Solid conductor | 0.25 … 0.75?mm2?/ 24 … 18?AWG |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 … 0.34?mm2 | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
| Conductor connection direction to PCB | 0° | Number of poles | 1 |
Specifications may be subject to change without notice
