Product Model

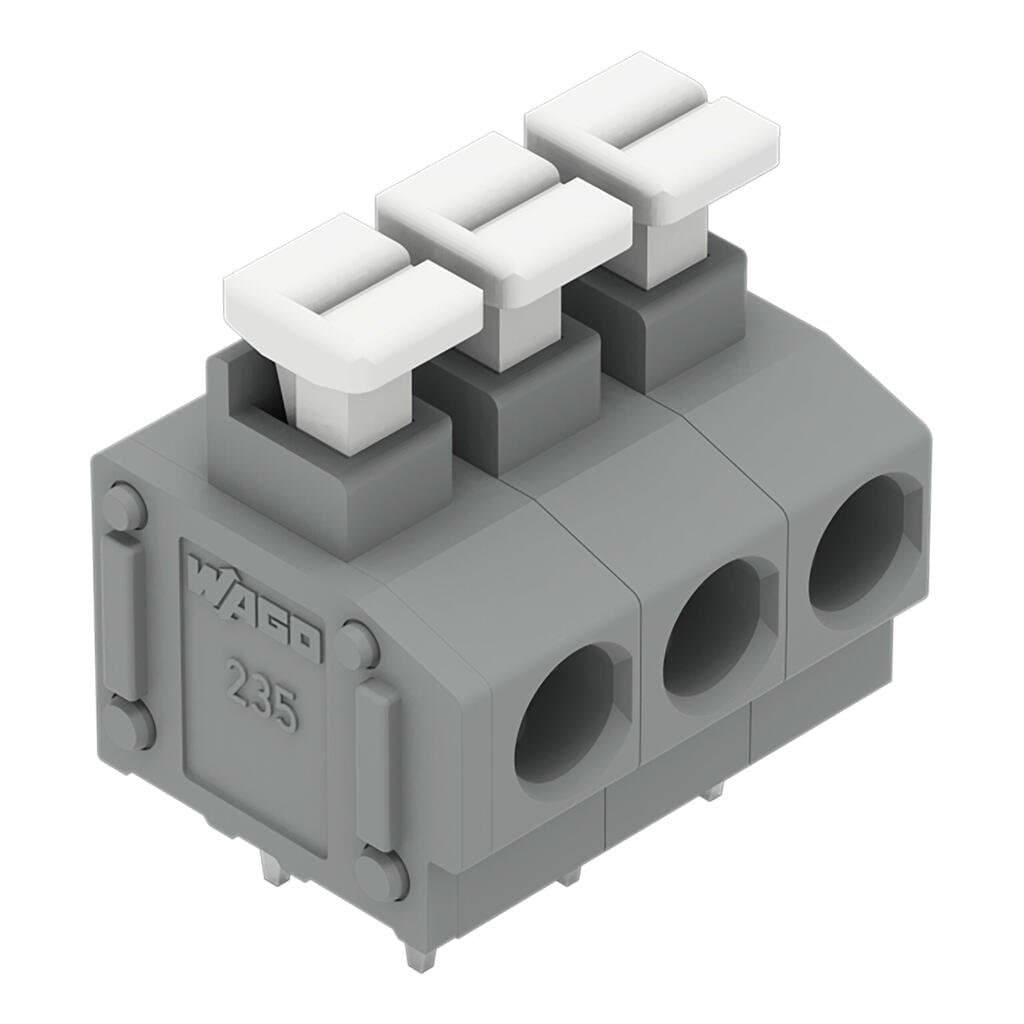

235-403/331-000
Key Features
- 1Effortless Connection: Push-in CAGE CLAMP technology with push-button actuation.
- 2High Reliability: Supports solid conductors from 0.2 to 1.5 mm² and fine-stranded conductors from 0.75 to 1.5 mm².
- 3Versatile Design: 3-pole terminal block with a pin spacing of 5/5.08 mm, suitable for various PCB applications.
- 4Durable Construction: Made from Polyamide (PA66) with a flammability class of V0, ensuring safety in harsh environments.
- 5Easy Installation: Convenient termination and removal of conductors, reducing installation time and effort.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 3 |
| Total number of potentials | 3 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 5/5.08 mm / 0.197/0.2 inches |
| Width | 16.5 mm / 0.65 inches | Height | 19.1 mm / 0.752 inches |
| Height from the surface | 15.5 mm / 0.61 inches | Depth | 12.5 mm / 0.492 inches |
| Solder pin length | 3.6mm | Solder pin dimensions | 0.4 x 0.8 mm |
| Drilled hole diameter with tolerance | 1(+0.1)mm | PCB contact | THT |
| Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.046MJ | Weight | 2.4g |
| Limit temperature range | -60 … +105 °C | Product Group | 4 (Printed Circuit Connectors) |
| eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
| ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 280 (70) pcs |
| Packaging type | Box | Country of origin | CN |
| GTIN | 4055143258630 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 17.5A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 15A | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Push-button | Solid conductor | 0.2 … 1.5 mm2 / 20 … 14 AWG |
| Fine-stranded conductor | 0.75 … 1.5 mm2 / 20 … 14 AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1 mm2 |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1 mm2 | Note (conductor cross-section) | Fine-stranded conductor 0.25 … 0.5 mm2 (I max. 2 A)Fine-stranded conductor 0.75 … 1.5 mm2 (I max. 6 A) |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches | Conductor connection direction to PCB | 0° |
| Number of poles | 3 |
