Product Model

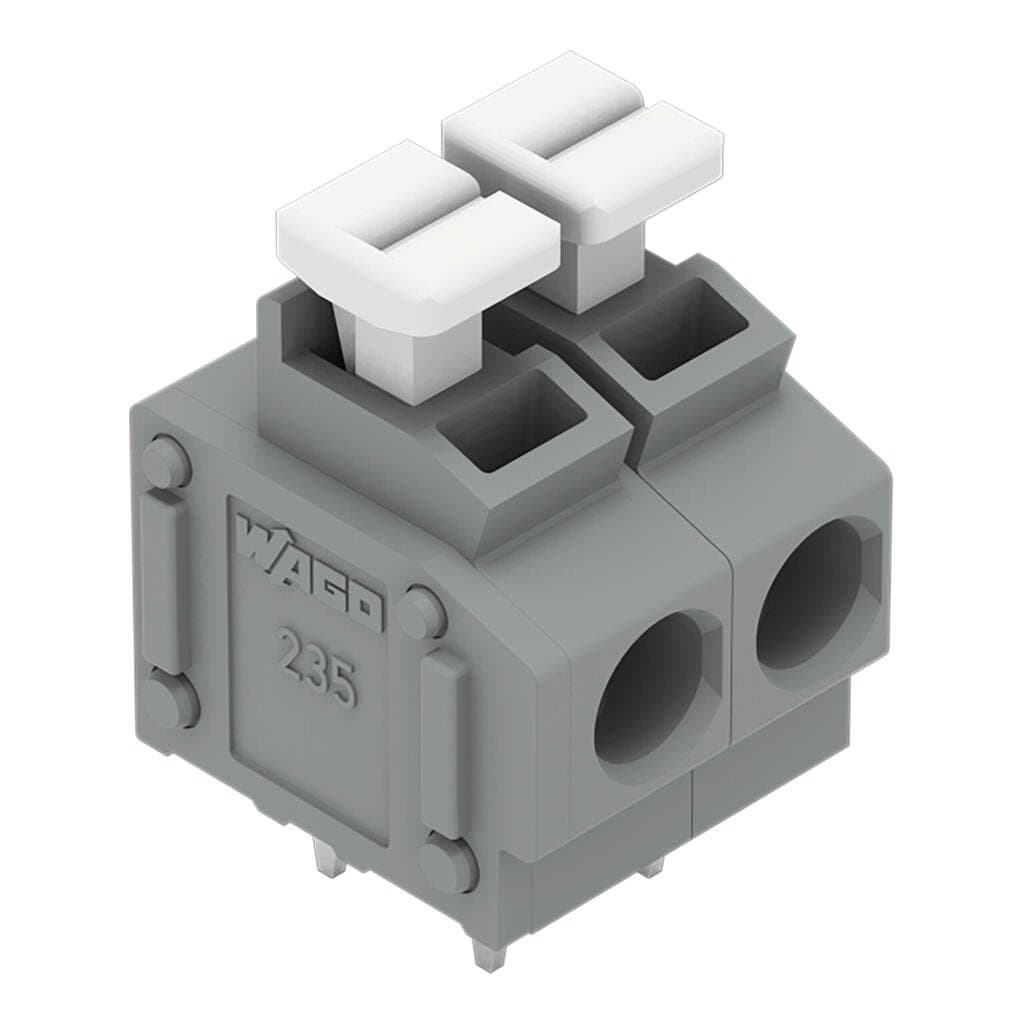

235-402/332-000
Key Features
- 1High-quality and durable design for reliable performance.
- 2Easy installation with push-in CAGE CLAMP technology.
- 3Secure and stable connections in electrical and automation systems.
- 4Versatile compatibility with a range of systems and environments.
- 5Efficient connectivity solutions for different industrial applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 2 |
| Total number of potentials | 2 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 5/5.08 mm / 0.197/0.2 inches |
| Width | 11.5 mm / 0.453 inches | Height | 19.1 mm / 0.752 inches |
| Height from the surface | 15.5 mm / 0.61 inches | Depth | 12.5 mm / 0.492 inches |
| Solder pin length | 3.6mm | Solder pin dimensions | 0.4 x 0.8 mm |
| Drilled hole diameter with tolerance | 1(+0.1)mm | PCB contact | THT |
| Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.032MJ | Weight | 1.6g |
| Limit temperature range | -60 … +105 °C | Product Group | 4 (Printed Circuit Connectors) |
| eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
| ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 420 (105) pcs |
| Packaging type | Box | Country of origin | CN |
| GTIN | 4044918654104 | Customs tariff number | 85369010000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 17.5A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 15A | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Push-button | Solid conductor | 0.2 … 1.5 mm2 / 20 … 14 AWG |
| Fine-stranded conductor | 0.75 … 1.5 mm2 / 20 … 14 AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1 mm2 |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1 mm2 | Note (conductor cross-section) | Fine-stranded conductor 0.25 … 0.5 mm2 (I max. 2 A)Fine-stranded conductor 0.75 … 1.5 mm2 (I max. 6 A) |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches | Conductor connection direction to PCB | 0° |
| Number of poles | 2 |
Specifications may be subject to change without notice
