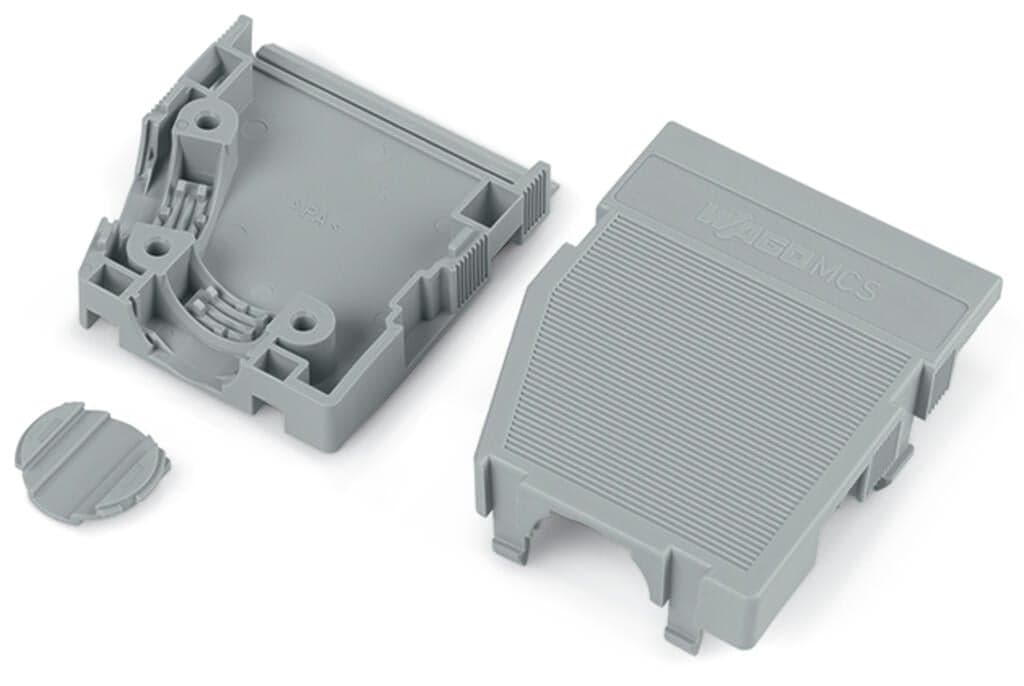

Product Model
232-608
Key Features
- 1Secure Connector Support: Provides reliable strain relief for standard male and female connectors.
- 2Durable Construction: Made from high-quality materials, including polyamide (PA66) and chrome-nickel spring steel.
- 3Easy Installation: Snap-on type design for quick and effortless installation.
- 4Comprehensive Certifications: Meets international standards including DEKRA, KEMA/KEUR, CSA, and UL certifications.
- 5Versatile Compatibility: Suitable for a wide range of applications, ensuring compatibility with various connectors and cables.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pin spacing | 5?mm?/ 0.197?inches | Width | 43?mm?/ 1.693?inches |
| Height | 17.5?mm?/ 0.689?inches | Depth | 54?mm?/ 2.126?inches |
| Suitable | for standard male and female connectors | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.606MJ | Weight | 11.6g |
| Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-44-04-92 | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332283069 |
| Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
| Number of poles | 8 |
Specifications may be subject to change without notice
