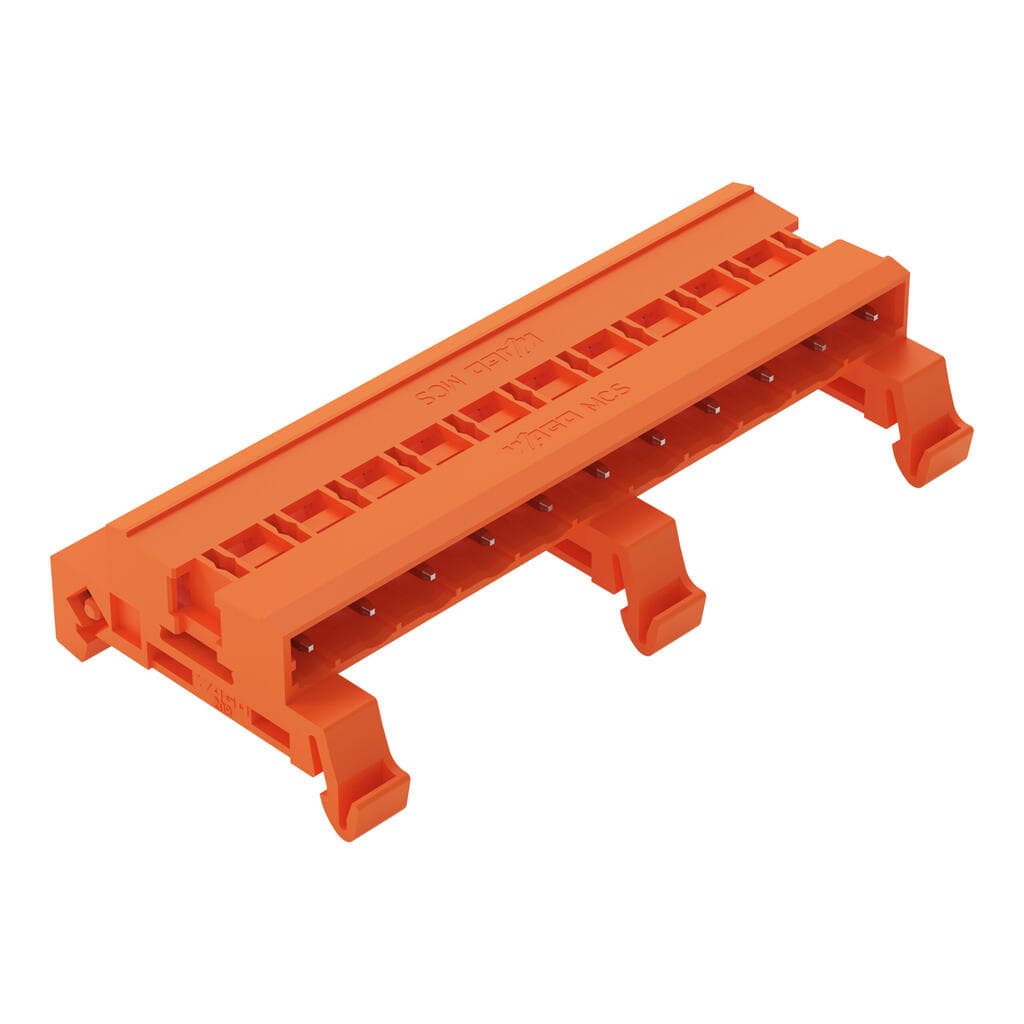

Product Model
232-591/007-000
Key Features
- 1DIN-35 Rail Mounting: Easily integrate into DIN-35 rail systems for versatile connectivity.
- 211-Pole Configuration: Supports up to 11 poles for multiple connection points.
- 37.62 mm Pin Spacing: Standardized pin spacing for seamless integration with other components.
- 4Orange Color: Durable orange color for easy identification in complex setups.
- 5CAGE CLAMP Technology: Secure and reliable connection via WAGO's patented CAGE CLAMP technology.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Safety information 2 | Notice: Male connectors must not be live when disconnected! |
| Variants: | Other pole numbers | Total number of potentials | 11 |
| Number of connection types | 1 | Number of levels | 1 |
| Pin spacing | 7.62?mm?/ 0.3?inches | Width | 84.2?mm?/ 3.315?inches |
| Height | 25.9?mm | Height from the surface | 6.5?mm |
| Height from upper-edge of DIN-rail | 15?mm?/ 0.591?inches | Depth | 42.5?mm?/ 1.673?inches |
| Variable coding | Yes | Mounting type | DIN-35 rail |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
| Connector (connection type) | for pluggable connector | Mismating protection | No |
| Plugging without loss of pin spacing | No | Locking of plug-in connection | none |
| Note (material data) | Information on material specifications can be found here | Color | orange |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Fire load | 0.315MJ |
| Weight | 13.8g | Limit temperature range | -60 … +100?°C |
| Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 10?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454340681 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
| Rated voltage (III/2) | 630V | Rated surge voltage (III/2) | 6kV |
| Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
| Rated current | 12A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Rated voltage (UL 1977) | 600V |
| Rated current UL 1977 | 15A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 15A | Rated voltage CSA (Use Group D) | 300V |
| Rated current CSA (Use Group D) | 10A | Number of poles | 11 |
Specifications may be subject to change without notice
