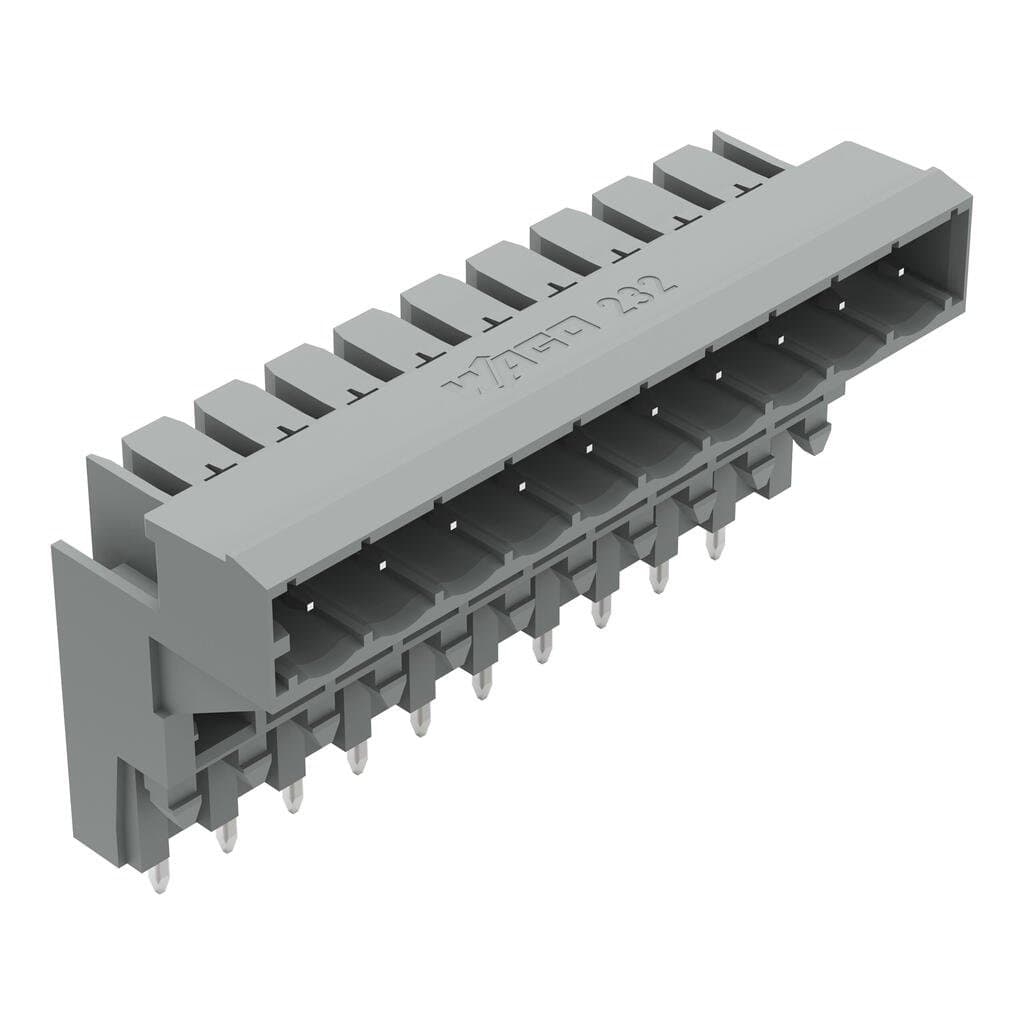

Product Model
232-340
Key Features
- 1High-density wiring: Perfect for dense PCB layouts.
- 2Angled solder pins: Facilitates easy assembly on double-deck designs.
- 310-pole configuration: Supports multiple connections in a compact space.
- 4Gray color: Easy to identify and integrate into your circuit.
- 5UL and CSA certified: Ensures safety and reliability in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
| Total number of potentials | 10 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 5?mm?/ 0.197?inches |
| Width | 53.2?mm?/ 2.094?inches | Height | 31?mm?/ 1.22?inches |
| Height from the surface | 26?mm?/ 1.024?inches | Depth | 17?mm?/ 0.669?inches |
| Solder pin length | 5mm | Solder pin dimensions | 1 x 1?mm |
| Drilled hole diameter with tolerance | 1.4(+0.1)mm | Variable coding | No |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Male header |
| Connector (connection type) | for PCB | Mismating protection | No |
| Plugging without loss of pin spacing | No | Mating direction to the PCB | 0° |
| Locking of plug-in connection | none | PCB contact | THT |
| Solder pin arrangement | over the entire male connector (in-line) | Number of solder pins per potential | 1 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Fire load | 0.225MJ |
| Weight | 8.6g | Limit temperature range | -60 … +100?°C |
| Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
| eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
| ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | PL |
| GTIN | 4044918685504 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 12A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Rated voltage (UL 1977) | 600V |
| Rated current UL 1977 | 10A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 10A | Rated voltage CSA (Use Group D) | 300V |
| Rated current CSA (Use Group D) | 10A | Number of poles | 10 |
Specifications may be subject to change without notice
