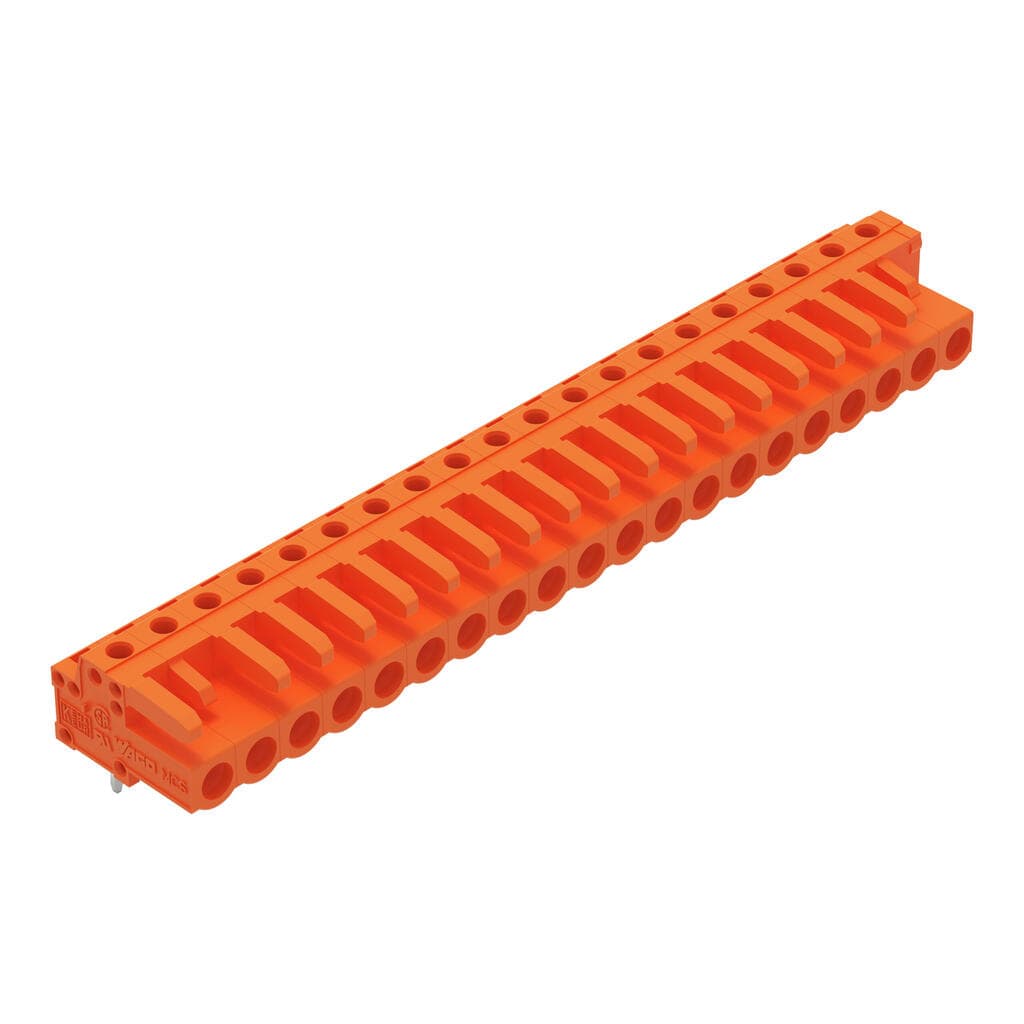

Product Model
232-280
Key Features
- 1Angled Design for Easy PCB Mounting: Perfect for both horizontal and vertical PCB mounting via angled solder pins.
- 2Touch-Proof PCB Outputs: Ensures safety by preventing accidental electrical shocks.
- 320-Pole Configuration: Offers ample connection points for complex circuit designs.
- 4Robust Solder Pins: 0.6 x 1.0 mm solder pins provide reliable connections.
- 5Codable for Easy Identification: Variable coding ensures easy identification of PCB inputs and outputs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
| Clamping units | 20 | Total number of potentials | 20 |
| Number of connection types | 1 | Number of levels | 1 |
| Pin spacing | 5.08?mm?/ 0.2?inches | Width | 103.1?mm?/ 4.059?inches |
| Height | 16.6?mm?/ 0.654?inches | Height from the surface | 11.6?mm?/ 0.457?inches |
| Depth | 18.25?mm?/ 0.719?inches | Solder pin length | 5mm |
| Solder pin dimensions | 0.6 x 1?mm | Drilled hole diameter with tolerance | 1.3(+0.1)mm |
| Variable coding | Yes | Anti-rotation protection | Yes |
| Contact type (pluggable connector) | Female header | Connector (connection type) | for PCB |
| Mismating protection | No | Plugging without loss of pin spacing | No |
| Mating direction to the PCB | 0° | Locking of plug-in connection | none |
| PCB contact | THT | Solder pin arrangement | over the entire female connector (in-line) |
| Number of solder pins per potential | 1 | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Contact material | Copper alloy | Contact plating | Tin |
| Fire load | 0.305MJ | Weight | 18.5g |
| Limit temperature range | -60 … +85?°C | Processing temperature | -35 … +60?°C |
| Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-44-04-02 |
| eCl@ss 9.0 | 27-44-04-02 | ETIM 9.0 | EC002637 |
| ETIM 8.0 | EC002637 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 10?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918579650 |
| Customs tariff number | 8536694040 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 320V |
| Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
| Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
| Rated surge voltage (II/2) | 4kV | Rated current | 12A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
| Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 15A |
| Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
| Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 15A |
| Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 15A |
| Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
| Number of poles | 20 | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
| Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
| Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
| Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
| Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
| Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
| Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
| Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
| Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
| Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
