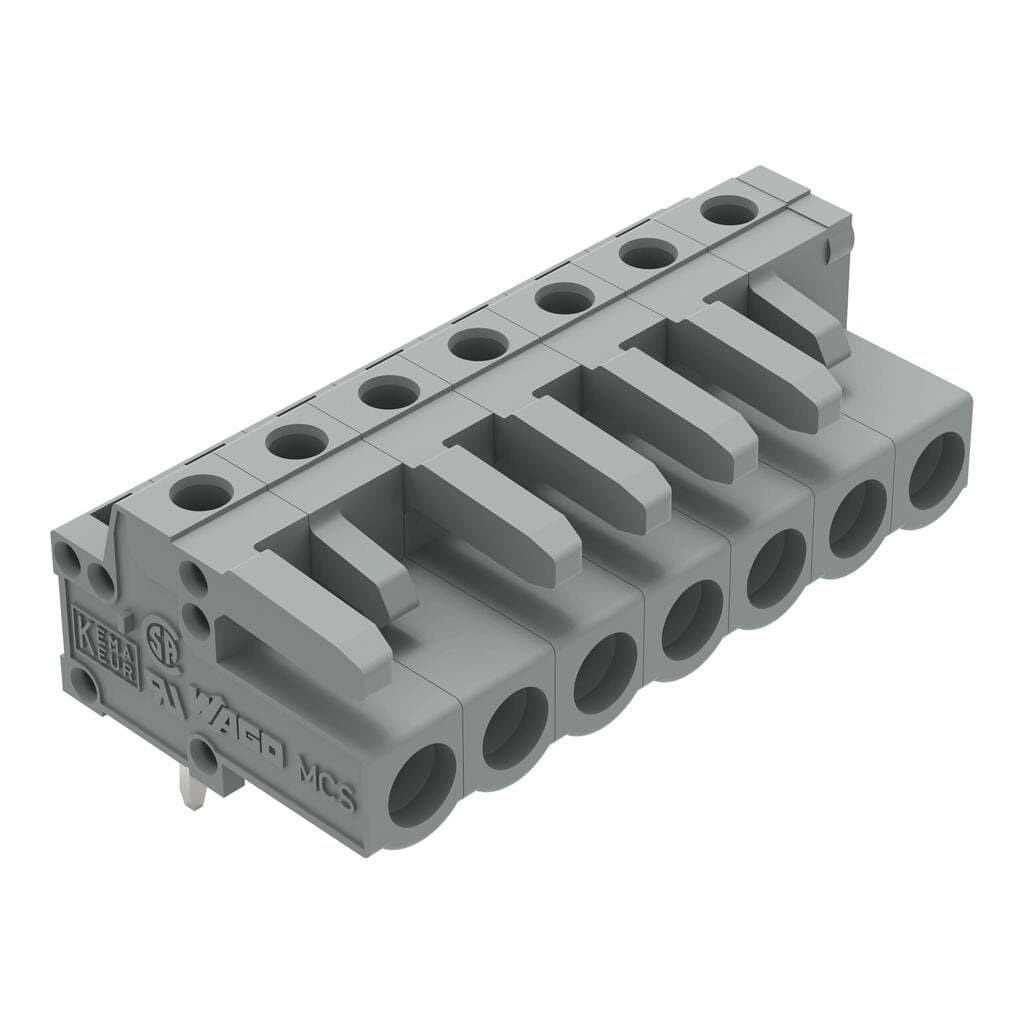

Product Model
232-237
Key Features
- 1Streamline your processes with Wago's product 232-237, featuring robust automation solutions.
- 2Built with durable components, ensuring consistent performance and minimal downtime.
- 3Compatible with a wide range of systems, making it simple to integrate into your existing setup.
- 4Offers precise control over various applications, including industrial and commercial settings.
- 5Designed with an intuitive interface for easy operation and minimal training required.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
| Total number of potentials | 7 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 5?mm?/ 0.197?inches |
| Width | 36.5?mm?/ 1.437?inches | Height | 16.6?mm?/ 0.654?inches |
| Height from the surface | 11.6?mm?/ 0.457?inches | Depth | 18.25?mm?/ 0.719?inches |
| Solder pin length | 5mm | Solder pin dimensions | 0.6 x 1?mm |
| Drilled hole diameter with tolerance | 1.3(+0.1)mm | Variable coding | Yes |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Female header |
| Connector (connection type) | for PCB | Mismating protection | No |
| Plugging without loss of pin spacing | No | Mating direction to the PCB | 0° |
| Locking of plug-in connection | none | PCB contact | THT |
| Solder pin arrangement | over the entire female connector (in-line) | Number of solder pins per potential | 1 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Contact material | Copper alloy |
| Contact plating | Tin | Fire load | 0.154MJ |
| Weight | 6.5g | Limit temperature range | -60 … +85?°C |
| Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
| eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
| ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918624831 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 12A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Rated voltage (UL 1977) | 600V |
| Rated current UL 1977 | 15A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 15A | Rated voltage CSA (Use Group D) | 300V |
| Rated current CSA (Use Group D) | 10A | Number of poles | 7 |
Specifications may be subject to change without notice
