Product Model

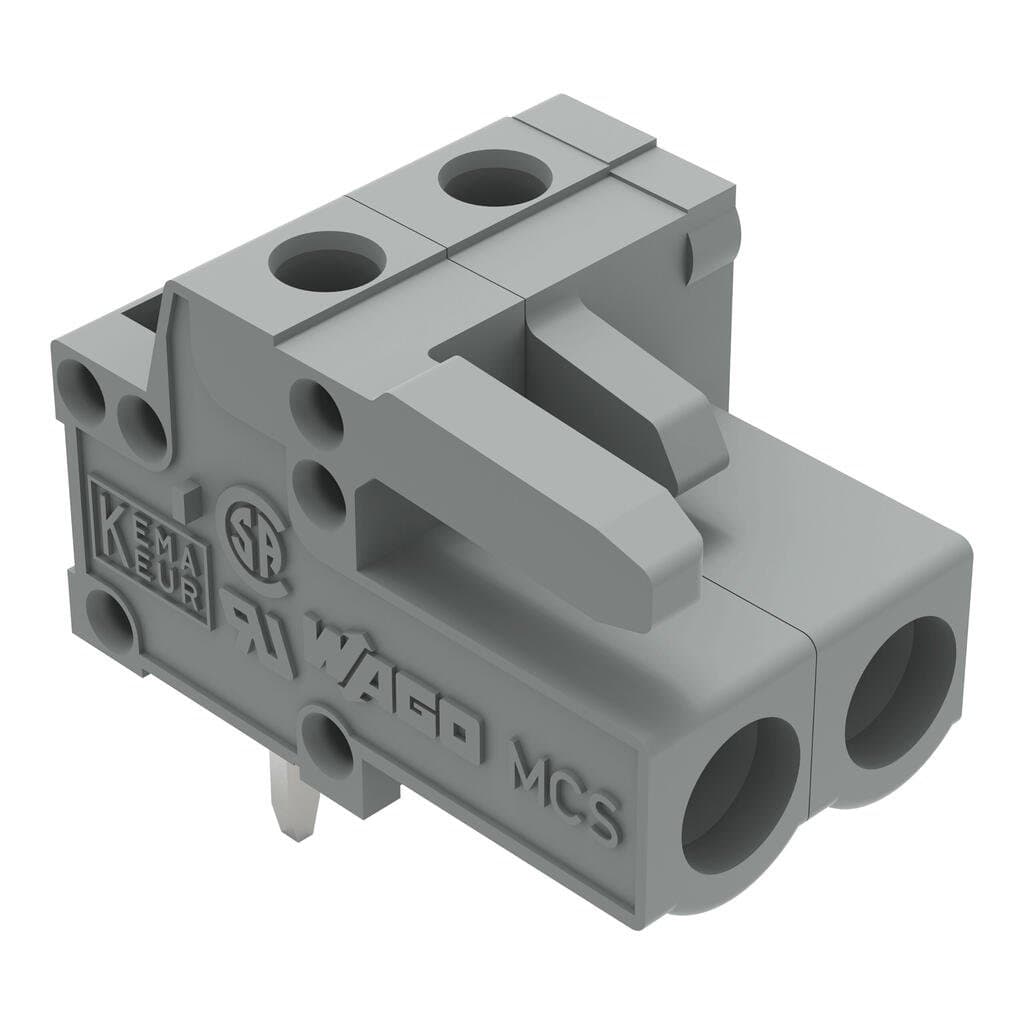

232-232
Key Features
- 1Angled Design for Easy Installation: The WAGO 232-232 THT female header is designed with an angled configuration for effortless installation.
- 220-Pole Configuration: Ideal for complex PCB connections, this header offers a 20-pole setup to meet various interconnect needs.
- 30.6 x 1.0 mm Solder Pins: The header features 0.6 x 1.0 mm solder pins, ensuring secure and reliable connections.
- 4Gray Finish for Durability: The gray finish enhances durability and provides a professional look in any electrical setup.
- 5Compact Dimensions: With a compact design, the WAGO 232-232 THT female header fits seamlessly into tight spaces on PCBs.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
| Total number of potentials | 2 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 5?mm?/ 0.197?inches |
| Width | 11.5?mm?/ 0.453?inches | Height | 16.6?mm?/ 0.654?inches |
| Height from the surface | 11.6?mm?/ 0.457?inches | Depth | 18.25?mm?/ 0.719?inches |
| Solder pin length | 5mm | Solder pin dimensions | 0.6 x 1?mm |
| Drilled hole diameter with tolerance | 1.3(+0.1)mm | Variable coding | Yes |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Female header |
| Connector (connection type) | for PCB | Mismating protection | No |
| Plugging without loss of pin spacing | No | Mating direction to the PCB | 0° |
| Locking of plug-in connection | none | PCB contact | THT |
| Solder pin arrangement | over the entire female connector (in-line) | Number of solder pins per potential | 1 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Contact material | Copper alloy |
| Contact plating | Tin | Fire load | 0.05MJ |
| Weight | 1.9g | Limit temperature range | -60 … +85?°C |
| Processing temperature | -35 … +60?°C | Product Group | 3 (Multi Conn. System) |
| eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
| ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 200?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918579094 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 12A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Rated voltage (UL 1977) | 600V |
| Rated current UL 1977 | 15A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 15A | Rated voltage CSA (Use Group D) | 300V |
| Rated current CSA (Use Group D) | 10A | Number of poles | 2 |
Specifications may be subject to change without notice
