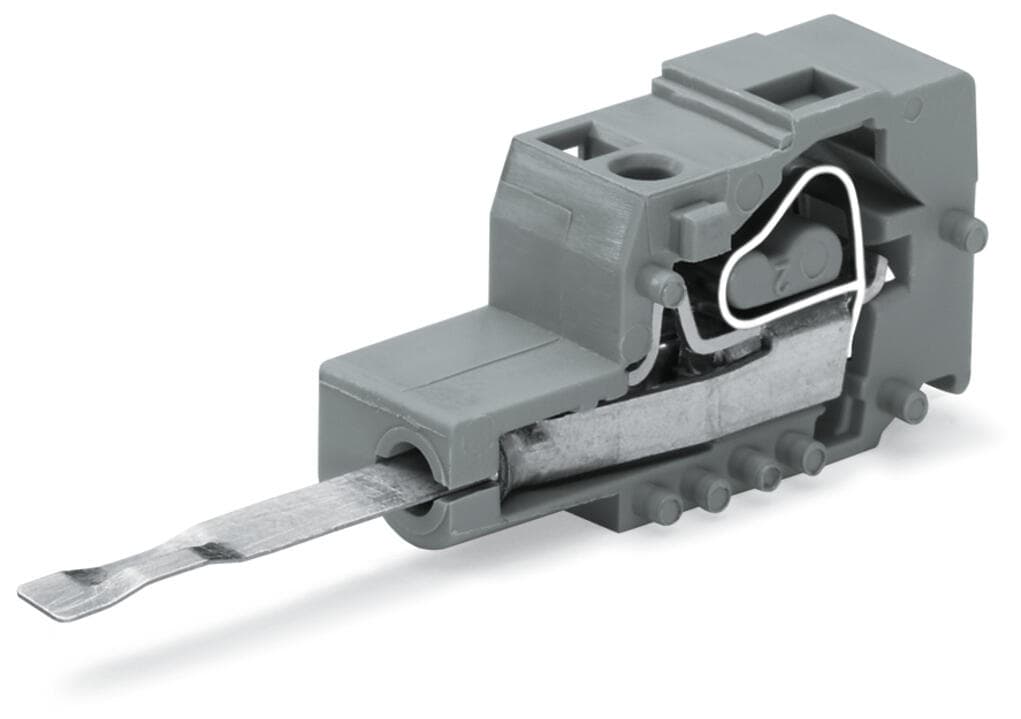

Product Model
231-456
Key Features
- 1Designed for 736, 737 Series terminal blocks.
- 2Pin spacing of 7.5 mm / 0.295 inches.
- 3Contact stud for reliable testing connections.
- 4Made from gray polyamide (PA66) with electrolytic copper contacts.
- 5Compliant with IEC/EN 60664-1 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 1 | Total number of potentials | 1 |
| Number of connection types | 1 | Pin spacing | 7.5?mm?/ 0.295?inches |
| Width | 7.5?mm?/ 0.295?inches | Height | 14.3?mm?/ 0.563?inches |
| Depth | 44.45?mm?/ 1.75?inches | Use | Testing wired terminal blocks with 0.75 …1.5 mm2 “f-st” or 0.5 mm2 “sol.” conductors |
| Test contact length | 18mm | Suitable | for 736, 737 Series |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.125MJ | Weight | 2.2g |
| Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
| Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-48 |
| eCl@ss 9.0 | 27-14-11-48 | ETIM 9.0 | EC002555 |
| ETIM 8.0 | EC002555 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?pcs | Packaging type | box |
| Country of origin | DE | Customs tariff number | 85366990990 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III/2) | 250V | Rated surge voltage (III/2) | 2.5kV |
| Rated current | 0.5A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches |
Specifications may be subject to change without notice
