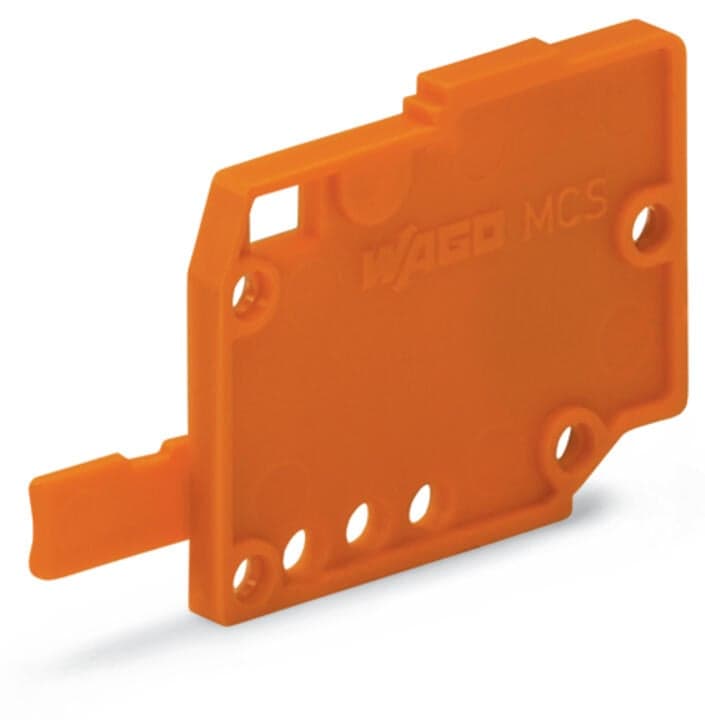

Product Model
231-300
Key Features
- 11.5 mm Thick and Orange Color: Durable and visually distinct.
- 2Snap-On Mounting Type: Easy installation with secure fit.
- 3Polyamide (PA66) Insulation Material: High-quality insulation for reliable connections.
- 4Compliant with RoHS: Environmentally friendly and compliant with regulations.
- 5Available in Multiples of 100: Convenient packaging for bulk orders.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1.5?mm?/ 0.059?inches | Height | 14.3?mm?/ 0.563?inches |
| Depth | 26.45?mm?/ 1.041?inches | Mounting type | snap-on type |
| Note (material data) | Information on material specifications can be found here | Color | orange |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.009MJ |
| Weight | 0.3g | Product Group | 3 (Multi Conn. System) |
| eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
| ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 200?(100)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332118439 | Customs tariff number | 8538906000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
