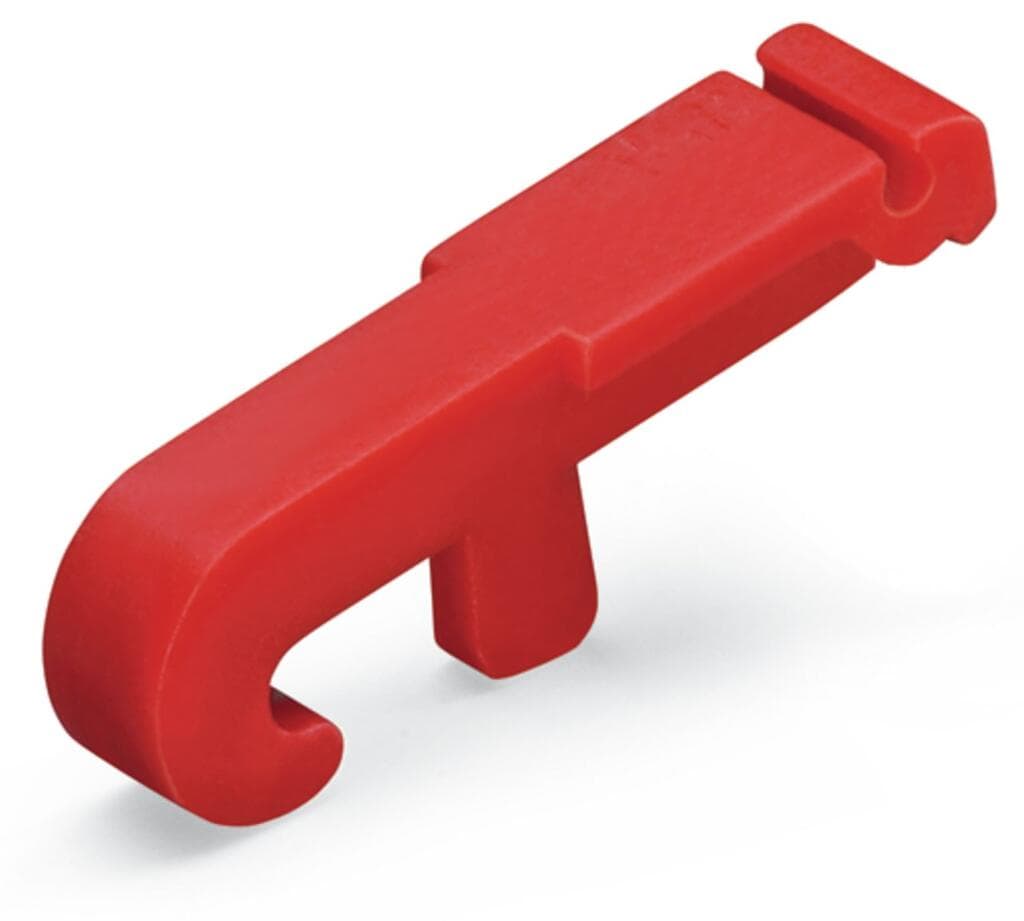

Product Model
231-291
Key Features
- 1Durable and resistant to harsh environments.
- 2Easy to install with secure connections.
- 3High current capacity for heavy-duty applications.
- 4Compact design for space-saving installations.
- 5Compatible with a wide range of industrial systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of spacings | 1-way | Depth | 20.2?mm?/ 0.79?inches |
| Pin spacing | 5/7.62?mm | Suitable | for male and female connectors with CAGE CLAMP?connection |
| Color | red | Material group | I |
| Insulation material (main housing) | Glass fiber-reinforced polyamide (PA66 GF) | Flammability class per UL94 | HB |
| Fire load | 0.01MJ | Weight | 0.3g |
| Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454830090 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
