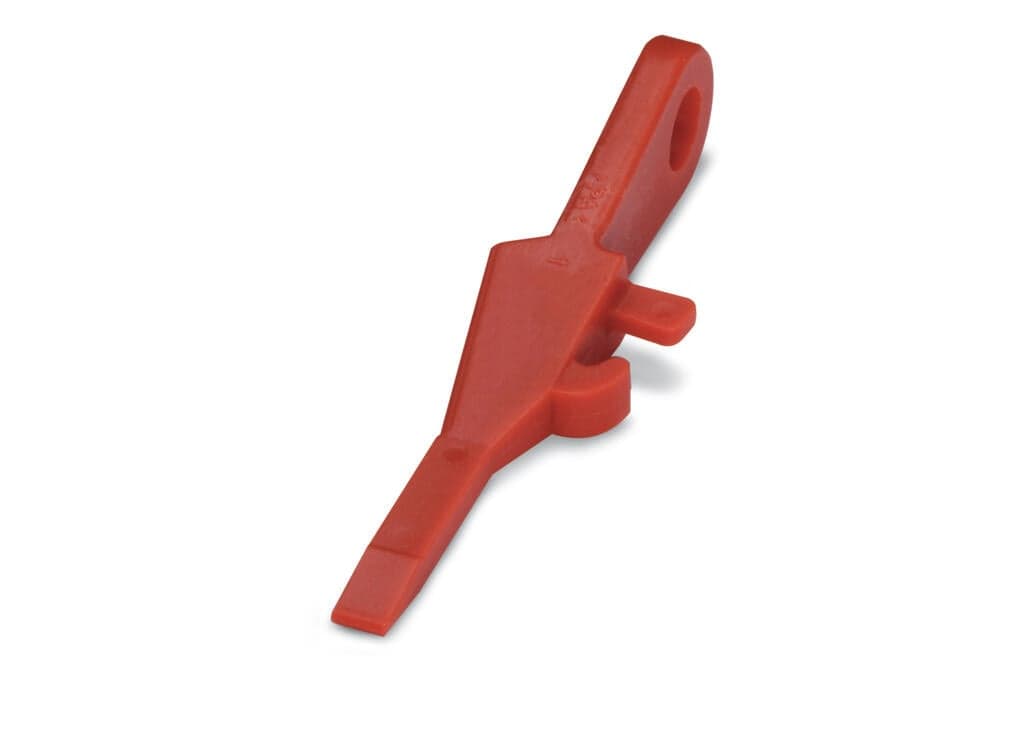

Product Model
231-231
Key Features
- 1Efficient Connector Management: Suitable for male and female connectors with CAGE CLAMP connection.
- 2Precise Pin Spacing: 5/7.62 mm pin spacing ensures accurate connections.
- 3High Fire Load: 0.038 MJ fire load for reliable performance under stress.
- 4Durable Construction: Made from glass fiber-reinforced polyamide for long-lasting use.
- 5Compact Design: 1.97 in D dimensions for easy handling and storage.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of spacings | 1-way | Depth | 50?mm?/ 1.97?inches |
| Pin spacing | 5/7.62?mm | Suitable | for male and female connectors with CAGE CLAMP?connection |
| Color | red | Insulation material (main housing) | Glass fiber-reinforced polyamide (PA66 GF) |
| Fire load | 0.038MJ | Weight | 1.3g |
| Product Group | 3 (Multi Conn. System) | eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454830106 |
| Customs tariff number | 8205598000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
