Product Model

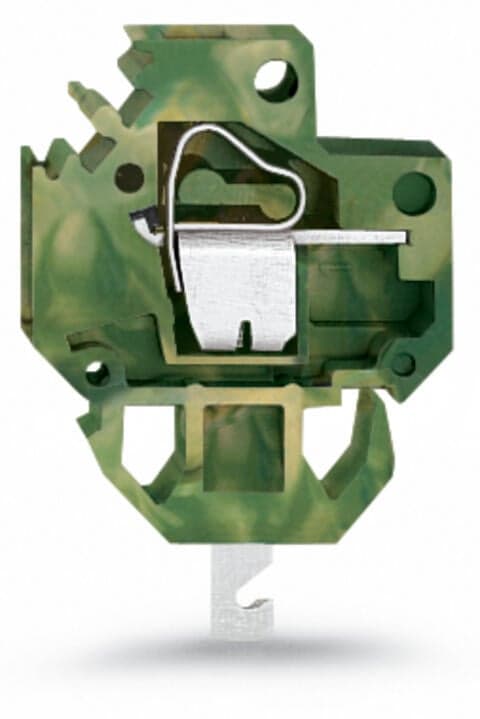

226-107
Key Features
- 1Modular design for easy installation and customization.
- 2Quick connect/solder contact for fast and secure connections.
- 3Robust CAGE CLAMP spring connections ensure reliable electrical connections.
- 4Accommodates wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG.
- 5Supports a rated current of 20A or 6A, suitable for various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 1 | Total number of potentials | 1 |
| Number of connection types | 2 | Number of levels | 1 |
| PE function | Direct PE contact | Pin spacing | 6?mm?/ 0.236?inches |
| Width | 6?mm?/ 0.236?inches | Height | 41.2?mm?/ 1.516?inches |
| Height from the surface | 22?mm?/ 1.622?inches | Depth | 26?mm?/ 1.024?inches |
| Solder pin dimensions | 4.8 x 0.8?mm | Housing sheet thickness | 1.5 … 1.5?mm?/ 0.059 … 0.059?inches |
| Direct ground contact to DIN-rail/drilled hole/housing | No | Mounting type | Feed-through mounting |
| Note (material data) | Information on material specifications can be found here | Color | green-yellow |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.055MJ | Weight | 4.1g |
| Limit temperature range | -60 … +105?°C | Product Group | 4 (Printed Circuit Connectors) |
| eCl@ss 10.0 | 27-14-11-34 | eCl@ss 9.0 | 27-14-11-34 |
| ETIM 9.0 | EC001283 | ETIM 8.0 | EC001283 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 200?pcs |
| Packaging type | bag | Country of origin | DE |
| GTIN | 4044918794398 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings | Quick connect contact |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 320V |
| Rated impulse voltage (III / 3) | 4kV | Rated voltage (III/2) | 320V |
| Rated surge voltage (III/2) | 4kV | Nominal voltage (II/2) | 630V |
| Rated surge voltage (II/2) | 4kV | Rated current | 20A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Ratings per 2 | IEC/EN 60664-1 |
| Rated voltage (III/3) 2 | 320V | Rated surge voltage (III/3) 2 | 4kV |
| Rated voltage (III/2) 2 | 320V | Rated surge voltage (III/2) 2 | 4kV |
| Rated voltage (II/2) 2 | 630V | Rated surge voltage (II/2) 2 | 4kV |
| Rated current 2 | 6A | Approvals per | CSA |
| Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 6A |
| Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 6A |
| Rated voltage UL (Use Group D) | 600V | Rated current UL (Use Group D) | 5A |
| Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 6A |
| Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 6A |
| Rated voltage CSA (Use Group D) | 600V | Rated current CSA (Use Group D) | 5A |
| Connection technology | CAGE CLAMP? | Total number of connection points | 1 |
| Actuation type | Operating tool | Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2 |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2 | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
| Number of poles | 1 | Connection technology 2 | Solder connection |
| Number of connection points 2 | 1 | Connection technology 3 | Quick-connect contact |
