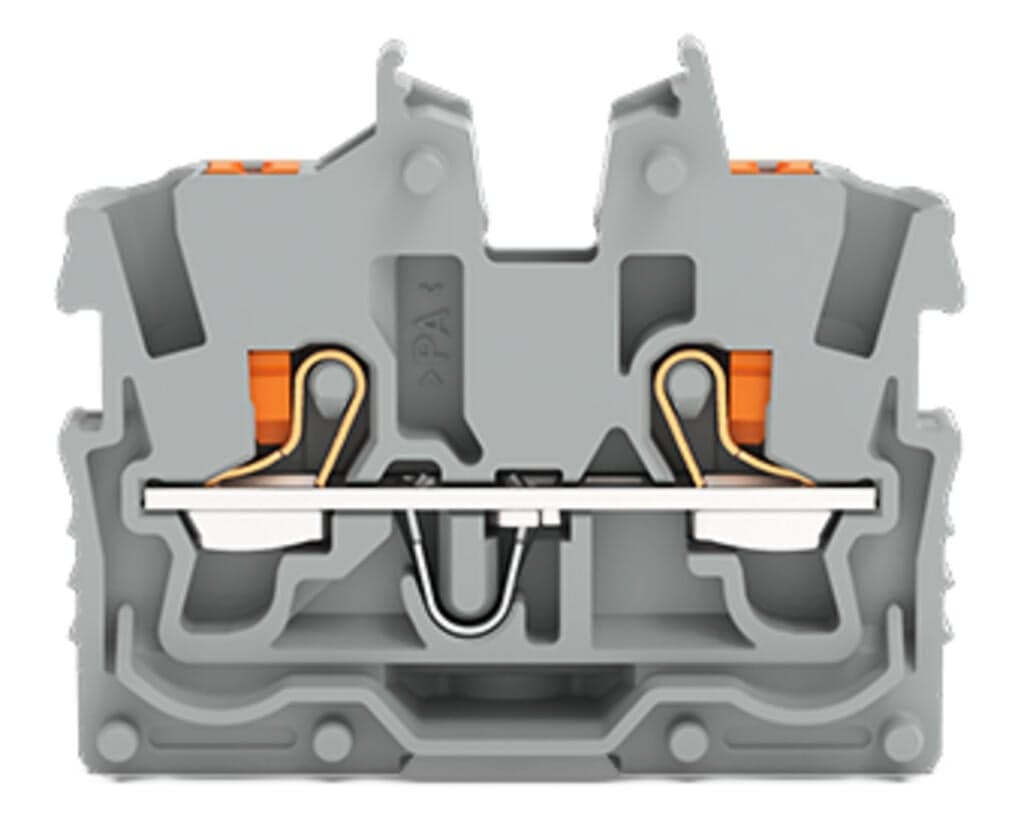

Product Model
2250-301
Key Features
- 110 A for reliable power distribution.
- 2Compatible with AWG 24 to 16 wires.
- 3Made from Polyamide 6.6 for long-lasting performance.
- 4Push-in connection for quick and secure terminal block assembly.
- 5Operates from -60°C to 105°C for diverse environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Number of jumper slots | 1 |
| Width | 3.5?mm?/ 0.138?inches | Height from the surface | 27.2?mm?/ 1.071?inches |
| Depth | 33.2?mm?/ 1.307?inches | Mounting type | Mounting flange |
| Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.018MJ | Weight | 2.5g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | box | Country of origin | IN |
| GTIN | 4055143965613 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: PTB 19 ATEX 1019 U / IECEx: PTB 19.0050U (Ex eb IIC Gb) |
| Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 13.5A | Current at conductor cross-section (max.) mm2 | 17.5A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
| Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
| Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 10A |
| Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 10A |
| Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 10A |
| Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 352V |
| Rated current (Ex e II) | 13.5A | Rated current (Ex e II) with jumper | 12A |
| Power loss, per pole (potential) | 0.434W | Rated current I<sub>N</sub> for specified power loss | 13.5A |
| Resistance value for specified, current-dependent power loss | 0.002Ω | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Push-button | Connectable conductor materials | Copper |
| Nominal cross-section | 1 mm2 | Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
| Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.14 … 1 mm2 / 24 … 18 AWG | Fine-stranded conductor; with uninsulated ferrule | 0.14 … 1 mm2 / 24 … 18 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 1 mm2 / 20 … 18 AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Wiring direction | Front-entry wiring |
