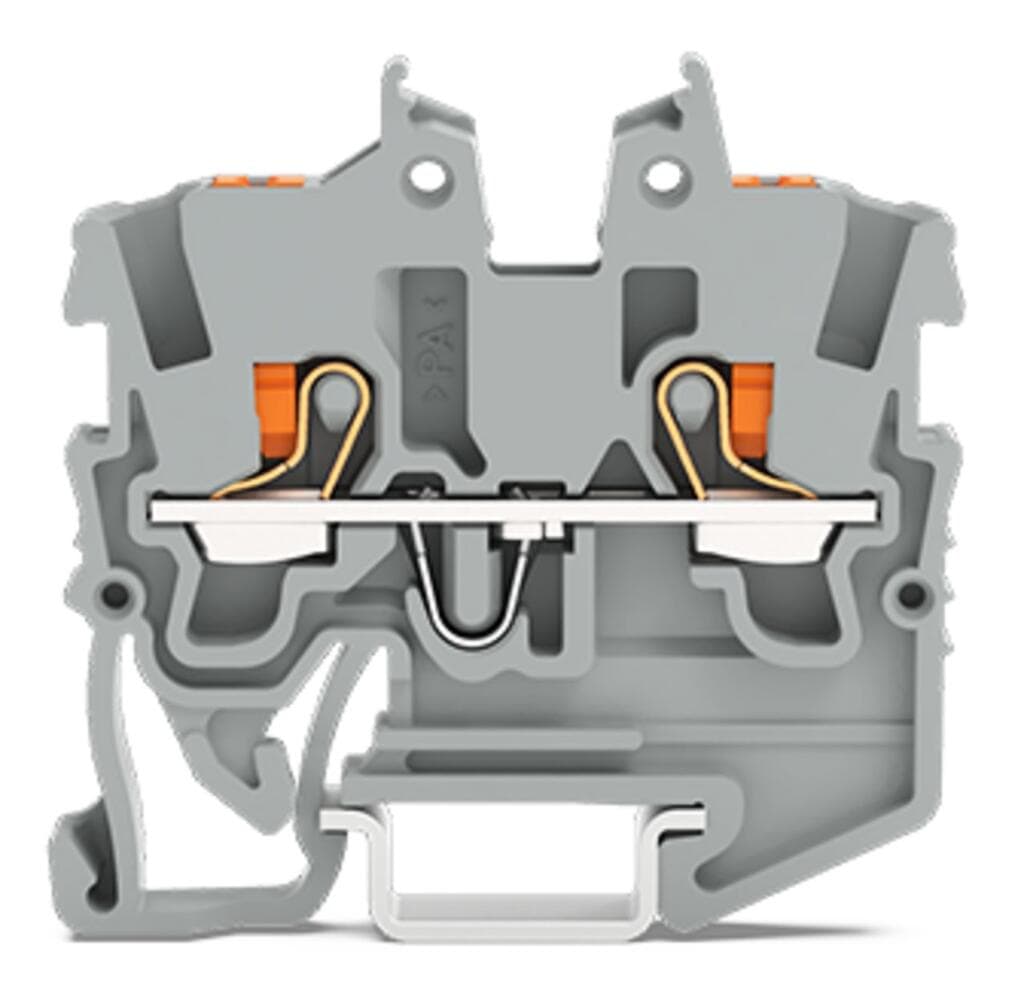

Product Model
2250-1201
Key Features
- 1500V for reliable high-voltage applications.
- 21.343 in H x 0.138 in W x 1.098 in D dimensions for space-saving installations.
- 3Made from polyamide 6.6 for long-lasting performance in various environments.
- 4Push-in wire connections simplify the installation process.
- 5Supports wire sizes from 24 to 16 AWG for flexible use in different applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Number of jumper slots | 1 |
| Width | 3.5?mm?/ 0.138?inches | Height | 34.1?mm?/ 1.343?inches |
| Depth from upper-edge of DIN-rail | 27.9?mm?/ 1.098?inches | Mounting type | DIN-15 rail |
| Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.064MJ | Weight | 2.5g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | box | Country of origin | IN |
| GTIN | 4055143965200 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: PTB 19 ATEX 1019 U / IECEx: PTB 19.0050U (Ex eb IIC Gb) |
| Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 13.5A | Current at conductor cross-section (max.) mm2 | 17.5A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
| Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
| Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 10A |
| Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 10A |
| Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 10A |
| Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 352V |
| Rated current (Ex e II) | 13.5A | Rated current (Ex e II) with jumper | 12A |
| Rated current I<sub>N</sub> for specified power loss | 13.5A | Resistance value for specified, current-dependent power loss | 0.002Ω |
| Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
| Connectable conductor materials | Copper | Nominal cross-section | 1 mm2 |
| Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 20 … 16?AWG |
| Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.14 … 1 mm2 / 24 … 18 AWG |
| Fine-stranded conductor; with uninsulated ferrule | 0.14 … 1 mm2 / 24 … 18 AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 1 mm2 / 20 … 18 AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
