Product Model

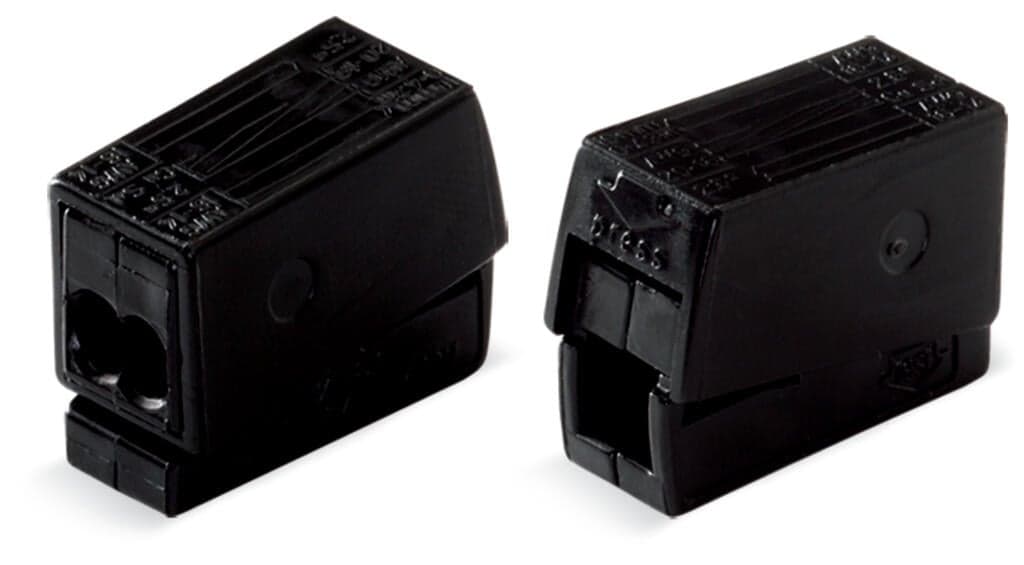

224-114
Key Features
- 1Increased operating temperature up to 120°C.
- 2Easy push-in termination for quick connections.
- 3Suitable for wire sizes 1mm² to 2.5mm² or #16AWG to #14AWG.
- 4RoHS compliant and certified for household applications.
- 5Compact design with a black finish for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | in grounded power lines | Clamping units | 3 |
| Total number of potentials | 1 | Width | 9.5?mm?/ 0.374?inches |
| Height | 15.5?mm?/ 0.61?inches | Depth | 20.5?mm?/ 0.807?inches |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Fire load | 0.051MJ | Weight | 2.5g |
| Ambient temperature (operation) | +75 °C | Continuous operating temperature | 120?°C |
| eCl@ss 10.0 | 27-14-11-03 | eCl@ss 9.0 | 27-14-11-03 |
| ETIM 9.0 | EC000446 | ETIM 8.0 | EC000447 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | box | Country of origin | CH |
| GTIN | 4044918583787 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | EN 60664 |
| Nominal voltage (II/2) | 400V | Rated surge voltage (II/2) | 4kV |
| Rated current | 24A | Legend (ratings) | (II / 2) ? Overvoltage category II / Pollution degree 2 |
| Connection type 1 | Installation side | Connection technology | PUSH WIRE? |
| Total number of connection points | 2 | Actuation type | Push-in |
| Connectable conductor materials | Copper | Connectable conductor materials (note) | Copper/Copper Connection Only |
| Solid conductor | 1 … 2.5?mm2?/ 16 … 14?AWG | Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches |
| Wiring direction | Side-entry wiring | Connection type 2 | Lighting side |
| Connection technology 2 | CAGE CLAMP? | Number of connection points 2 | 1 |
| Solid conductor 2 | 0.5 … 2.5?mm2?/ 20 … 14?AWG | Fine-stranded conductor 2 | 0.5 … 2.5?mm2?/ 20 … 16?AWG |
Specifications may be subject to change without notice
